GB
Page 14 of 60
INSTRUCTION, USE AND
MAINTENANCE MANUAL

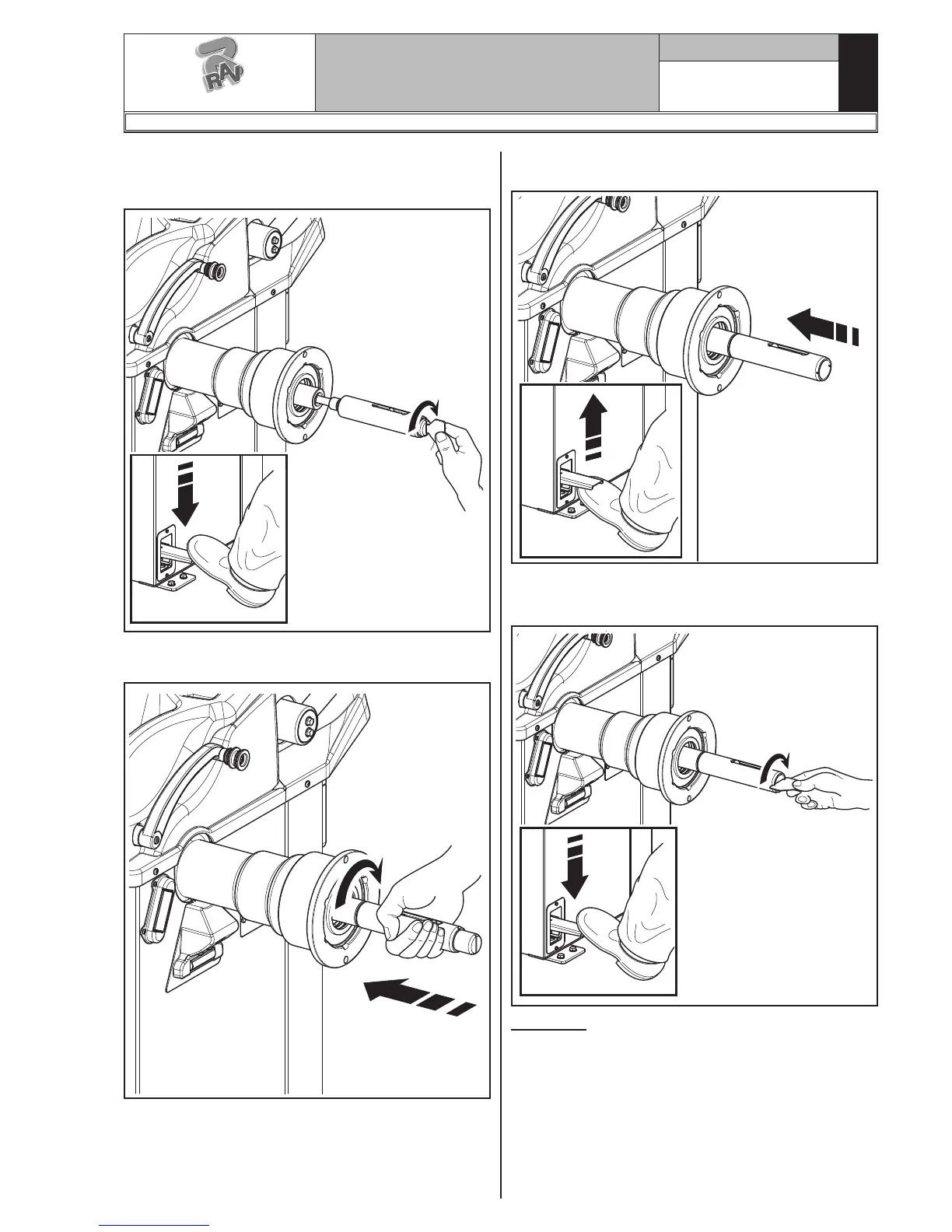

2. Press the brake's pedal and, at the same time, tighten
the internal mandrel as far as it will go using the
wrench provided (Fig. 9).
Fig. 9
3. Fit the external mandrel and tighten it manually
(Fig. 10).
Fig. 10
4. Close the pneumatic mandrel by means of the pedal
to access the key socket (Fig.(Fig. 11).
Fig. 11
5. Press the brake pedal and at the same time block
the external mandrel using the wrench supplied
(Fig. 12).
Fig. 12
REMOVAL
Close the pneumatic mandrel by means of the pedal
to access the key socket (Fig. 11).
• Press the brake pedal and at the same time release
the external mandrel by using the wrench provided
(Fig. 12).
Remove the external mandrel, open the pneumatic
mandrel by means of the pedal provided and loosen
the internal mandrel using the special wrench
(Fig. 9).
G3.140R - GP3.140R - G3.140RS - GP3.140RS
RAVAGLIOLI S.p.A.
1297-M007-1_R
