INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
Page 37 of 60
14.8.2 SPLIT mode
The Split procedure proves useful when the dynamic
unbalance of a wheel is fairly high and the weight to
be fitted is not available, for instance a 100 g weight.
It's possible then to correct the unbalance dividing
the amount of weight into two weights of smaller size.
The Split procedure eliminates errors by using the
“DYNAMIC” program, as for example by manually fit-
ting two 50 g weights close to one another, instead of
only a 100 gr one.

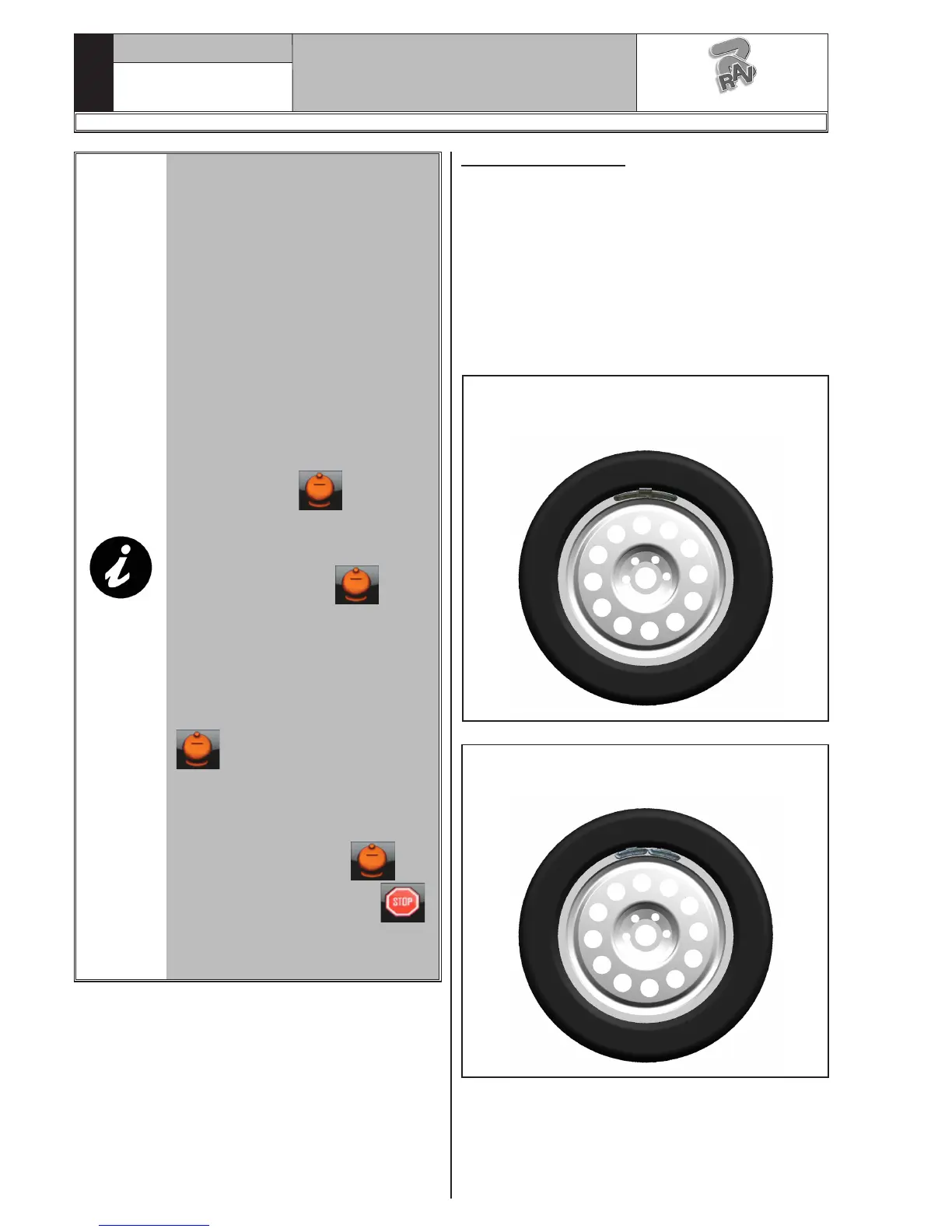

For example:
100 g WEIGHT
TO BE FITTED TO CORRECT UNBAL-
ANCE
TWO SMALLER WEIGHTS (50g)
FITTED MANUALLY
IMMEDIATELY AFTER HAVING
SELECTED THE ECO-WEIGHT
PROCEDURE, YOU CAN KNOW
IN ADVANCE THE TWO DYNAMIC
UNBALANCES AND THE STATIC
RESIDUE IN ORDER TO DECIDE
WHETHER IT IS CONVENIENT TO
CONTINUE (SEE FIG. 49).
IF BOTH DYNAMIC UNBALANCES
AND STATIC RESIDUE ARE SHOWN
AS WHITE VALUES ON THE MONI-
TOR, THIS MEANS THAT THE
PROGRAM HAS DECIDED THAT IT
IS BETTER TO CONTINUE. WHILE
IF, ON THE OTHER HAND, ONE OR
MORE VALUES ARE BLUE, THE
PROGRAM SUGGESTS USING THE
STANDARD ALU-S PROCEDURE.
PRESS BUTTON ONCE. THE
TWO RESIDUAL DYNAMIC UNBAL-
ANCES WILL BE DISPLAYED ON
MONITOR.
PRESS BUTTON ONCE
MORE. THE CALCULATED REAL
STATIC WEIGHT AND THE RE-
SIDUAL STATIC WEIGHT WILL BE
DISPLAYED ON SCREEN.
IF YOU ARE NOT WISHING TO OP-
ERATE WITH THE ECO-WEIGHT
PROCEDURE, PRESS BUTTON
, ONCE MORE. THE ALU-S
UNBALANCE VALUES WILL BE
DISPLAYED AGAIN.
WHILE IF YOU WISH TO OPERATE
WITH THE ECO-WEIGHT PROCE-
DURE, PRESS BUTTON FOR
A LONGER TIME (OR KEY )
TO GO BACK TO THE RESIDUAL
DYNAMIC/ECO-WEIGHT WEIGHT
DISPLAY SCREENS.
1297-M007-1_R
G3.140R - GP3.140R - G3.140RS - GP3.140RS
RAVAGLIOLI S.p.A.
