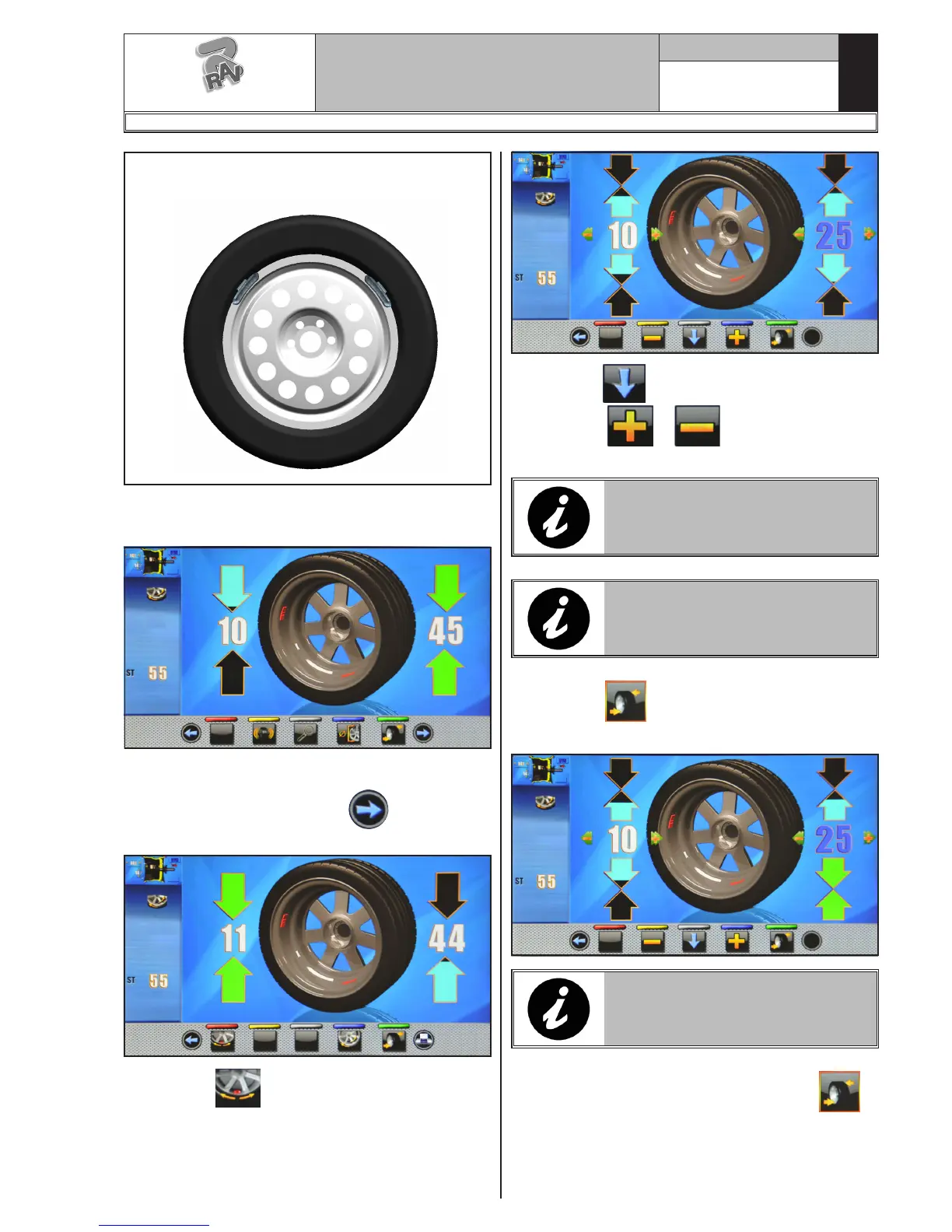

TWO SMALLER WEIGHTS (55g)
USING SPLIT PROCEDURE
Proceed to “DYNAMIC” unbalance measurement dis-
playing by performing a standard wheel spin.
Once detected the unbalance values, verify that the
machine displays the ability to use the "SPLIT" option
(Fig. 46 ref. 4a). Press button to shift to the
next screen page.
Press button to enter the “SPLIT” function.
On the monitor screen will be displayed where you
must enter the value of the weights to be fitted.
Press button to select the outer weight to edit.
Press buttons or to increase or decrease
the total weight to be fitted.
THE BLUE VALUE INDICATES
WHICH VALUE IS ACTIVE AND YOU
ARE EDITING.
THE HIGHER THE CHOSEN
WEIGHTS VALUE IS, THE MORE
THEY WILL BE SPACED.
After choosing the value of the weights to be fitted,
press button to position the wheel for the ap-
plication of the 1st clip weight.
THE TWO GREEN ARROWS INDI-
CATE THAT THE WHEEL IS PROP-
ERLY POSITIONED FOR THE AP-
PLICATION OF THE 1ST WEIGHT.
Fit the clip weight of the chosen value at 12 o’clock on
the outside of the wheel. Press again button to
position the wheel for the fitting of the 2
nd
clip weight.
