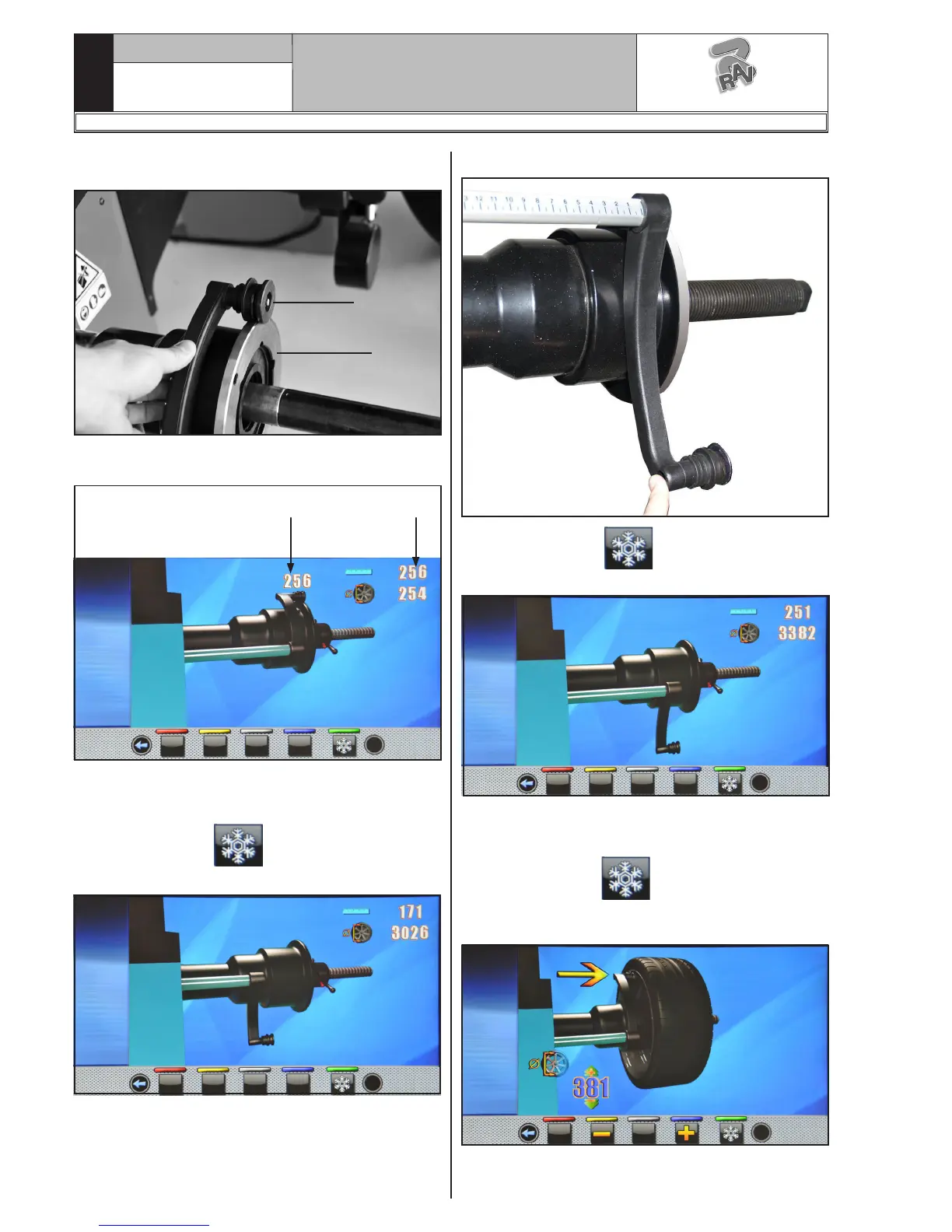

Place the gauge (Fig. 60 ref. 1) on the mandrel flange
(Fig. 60 ref. 2).
Fig. 60
2
1
The following screen will appear on the monitor to
indicate the measured values:
2
1
Fig._61
- The value next to the symbol "scale" (Fig. 61 ref. 1)
must be equal to the value positioned above the gauge
(Fig. 61 ref. 2) ± 1 mm.
- Press push button .
The following screen will appear on the monitor:
- Place the gauge as shown in the following figure:
- Press push button . Wait a few seconds until
you see the following screen:
- Place the gauge against the mandrel in the lower part
of the it but on a smaller diameter than before as
indicated on the image on the monitor.
- Press push button .
On the monitor the next screen page will be dis-
played:
1297-M007-1_R
G3.140R - GP3.140R - G3.140RS - GP3.140RS
