Ravaglioli GP3.140RS User Manual

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
Page 53 of 60
2 1
2
1
2
1
2
1

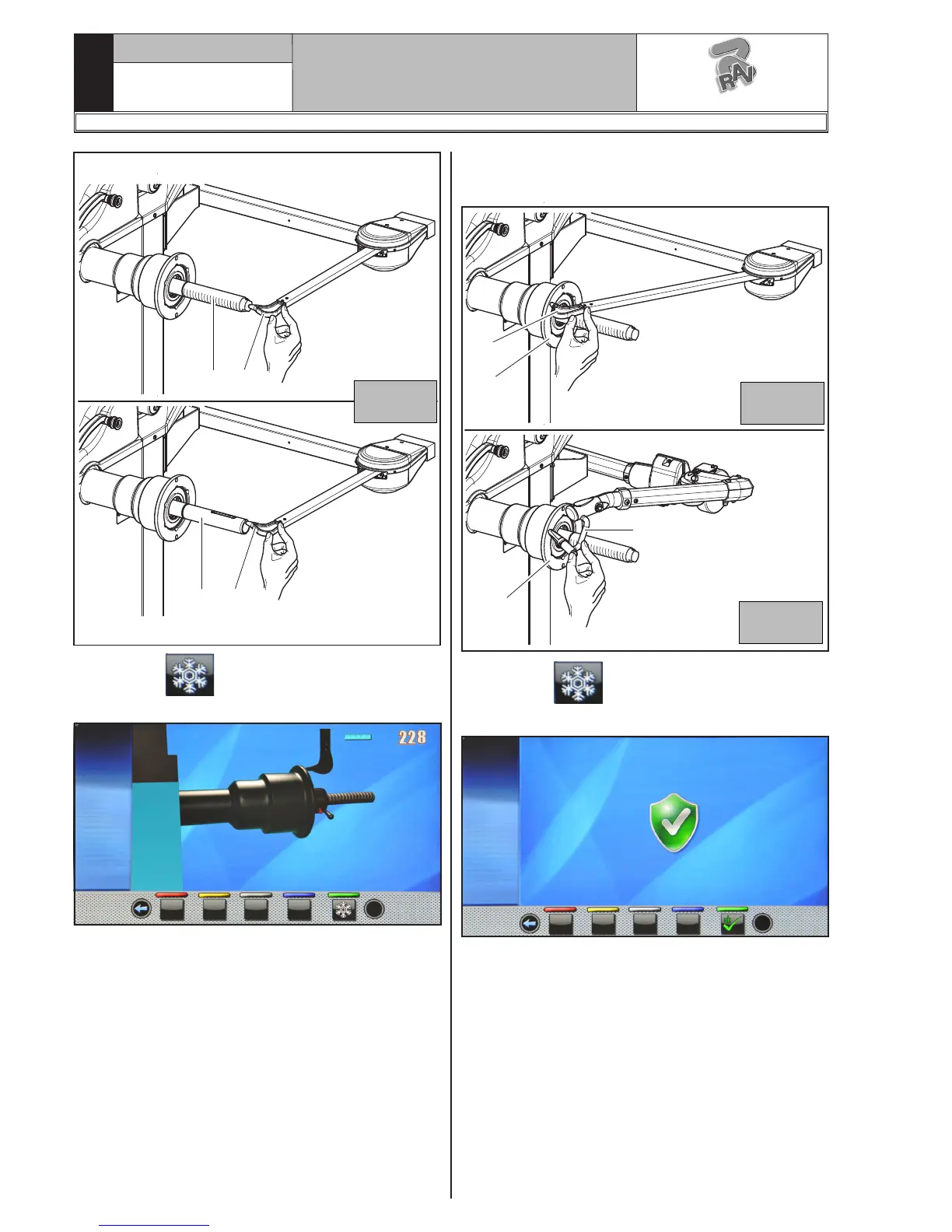

Fig. 65
SCREW MANDREL
PNEUMATIC MANDREL
GAR306
Press button .
On the monitor the next screen page will be displayed:
Fig. 66
GAR306
GAR304
Move the tip of the width measuring device (Fig. 66
ref. 1) in line with the outer surface of the flange
(Fig. 66 ref. 2).
Press button . At the end of the operation, the
following screen will appear on the monitor:
The calibration of the external data gauge is finished.
1297-M007-1_R
G3.140R - GP3.140R - G3.140RS - GP3.140RS
RAVAGLIOLI S.p.A.
