Ravelli SPILLO - Minimum Opening for Masonry and Manufactured Fireplace

User and maintenance manual for stoves with RDS technology
Pag.17
01/02/2016
W
H
D
D = 16.5 “ / 419 mm
W = 22.5” / 571.5 mm
H = 26” / 660.4 mm

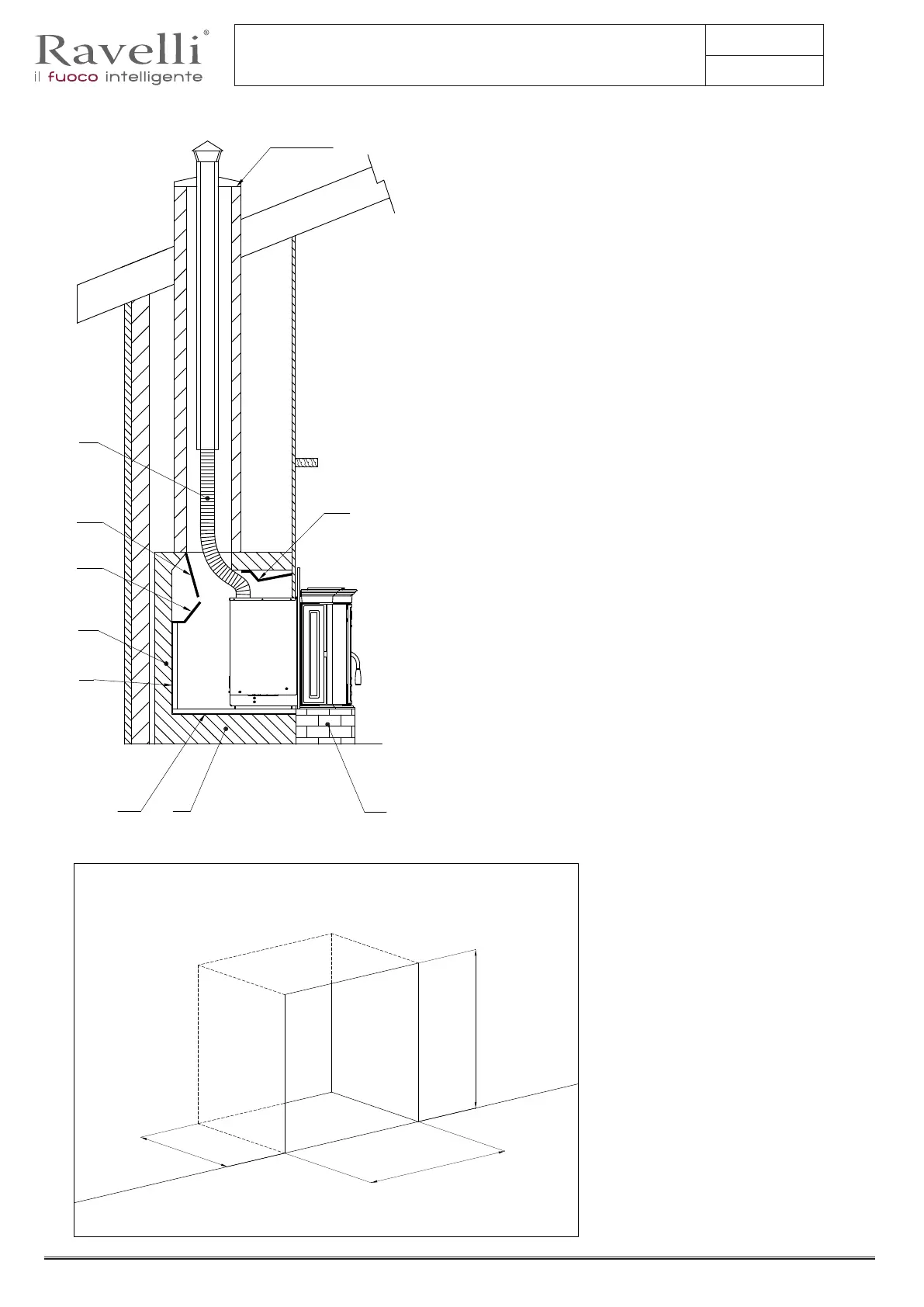

Minimum opening for masonry and manufactured fireplace (only for pellet fireplace insert)
A
B
C
C
C
D
E
F
G
E
A.-Seal the cover plate (non-combu-
stible);
B.-“L” vent ex section;
C.-The smoke ba󰀪e, damper and
shields may be removed if attached
with mechanical fasteners;
D.-The metal sides, frame members,
or other structural components of
the factory built replace may not
be removed or altered;
E.-The rebrick (refractory) may be
removed;
F.-The metal oor of the rebox may
be removed leaving the replace o-
or outer wrap;
G.-You shall built a support for in-
sert on raised replace.
