CHAPTER
3
Boom Installation: 13
CHAPTER 3 BOOM INSTALLATION
INSTALL HARNESS MOUNT BLOCKS
1. Remove each nozzle body and install a single leg or double leg harness mount block.

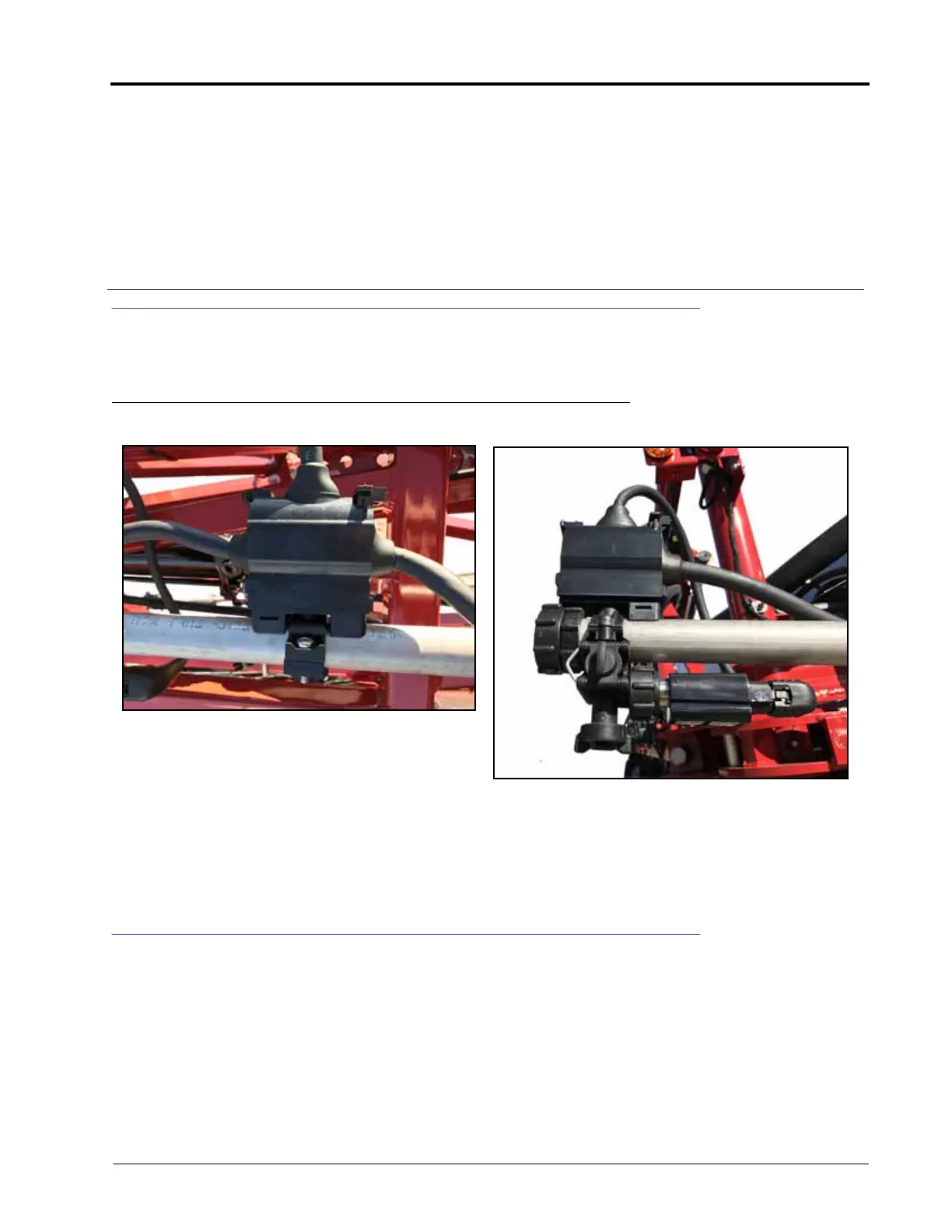

FIGURE 1. Harness Mount Block
2. Use the provided hardware to install the harness mounting block.
• Wilger nozzle bodies use 5/16” x 3/4” bolts and 5/16” nuts.
• Arag nozzle bodies use 1/4” x 3/4” bolts and 1/4” nuts.
AIM COMMAND FLEX NOZZLE CONTROL VALVE INSTALLATION
BEST PRACTICES AND RECOMMENDATIONS
• If a dual channel turret nozzle body is installed on the implement, always mount the AIM Command FLEX
nozzle control valve to the straight nozzle port to avoid excessive pressure drop across the nozzle.
Double Leg
Single Leg
