CHAPTER 4
22 AIM Command FLEX, Patriot MY 2017 Installation Manual

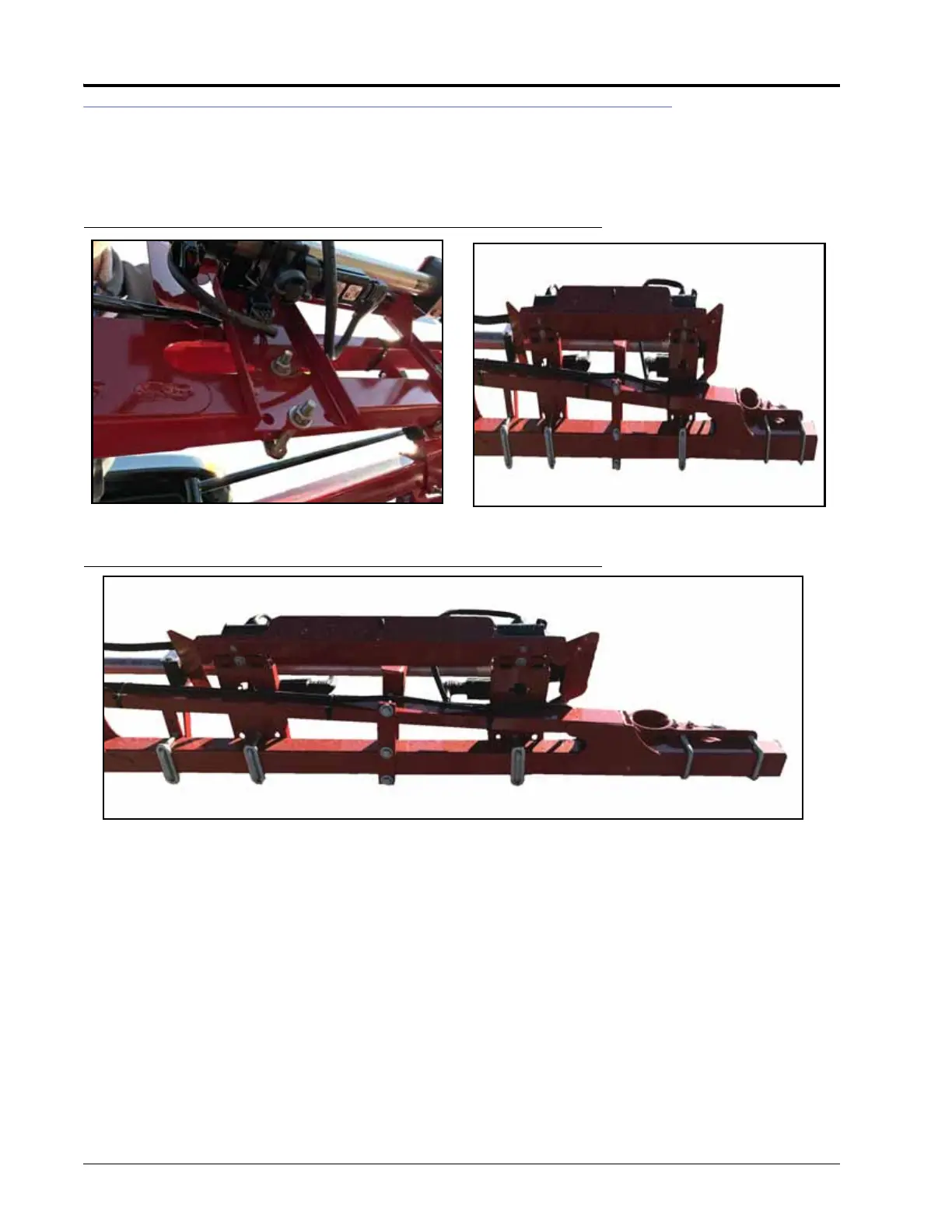

INSTALL NOZZLE DEFLECTOR BRACKETS ON END OF THE BOOM
Install the nozzle deflector brackets as shown. These brackets install on the end of the breakaway section of the
boom. They provide additional protection to the outer pair of nozzles.
FIGURE 6. Nozzle Deflector Brackets
FIGURE 7. Nozzle Deflector Installation
