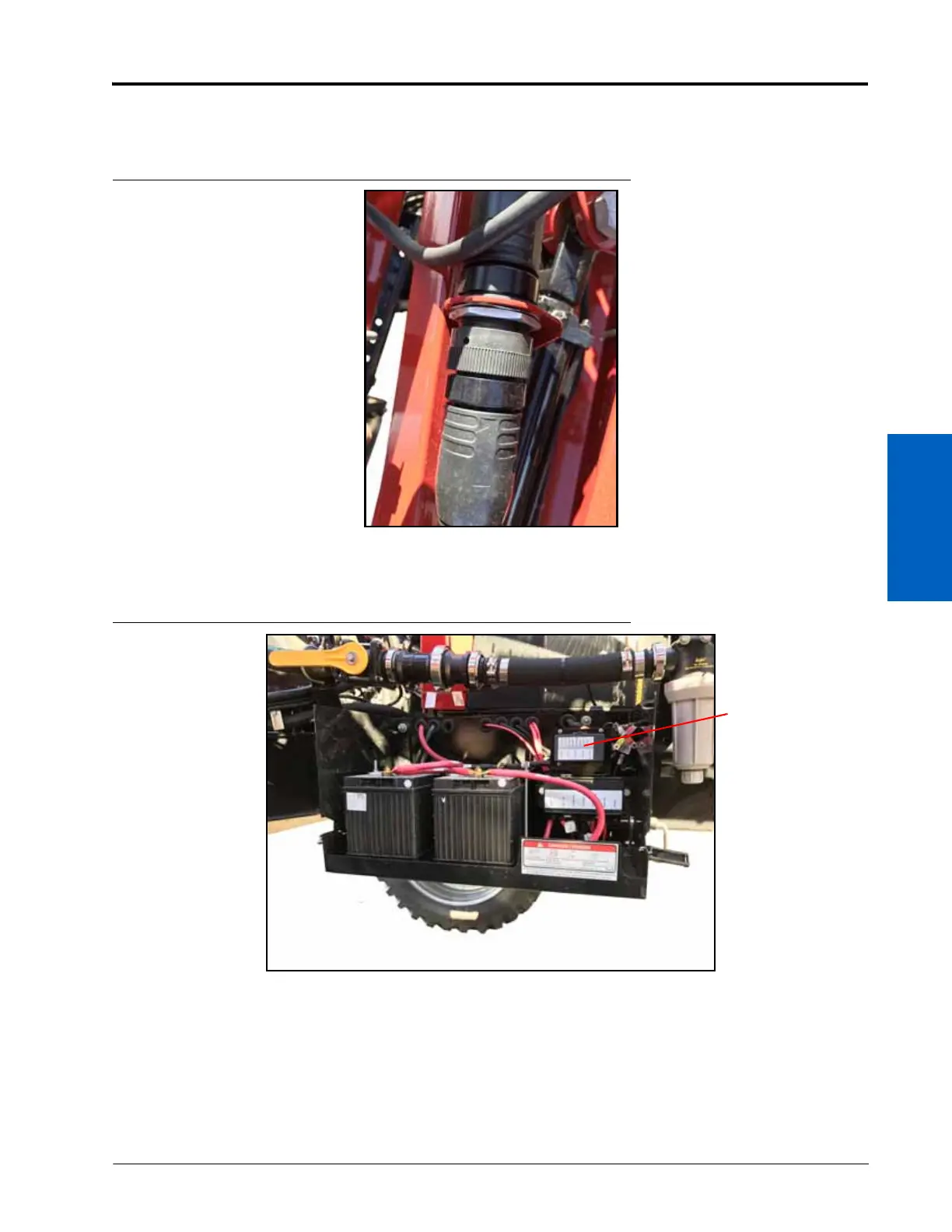

AIM Command FLEX Adapter Harness Installation: 21
AIM COMMAND FLEX ADAPTER HARNESS INSTALLATION
7. Use the provided u-bolt, spacer, and M10 nuts to install an electrical bulkhead adapter bracket at the left and
right boom connections.
FIGURE 4. Boom Connectors
8. Locate the fuse panel inside the battery compartment, in front of the right rear wheel.
FIGURE 5. Fuse Panel
9. Install the 30 Amp fuses in the F7, F8, and F9 spots.
Fuse Panel
