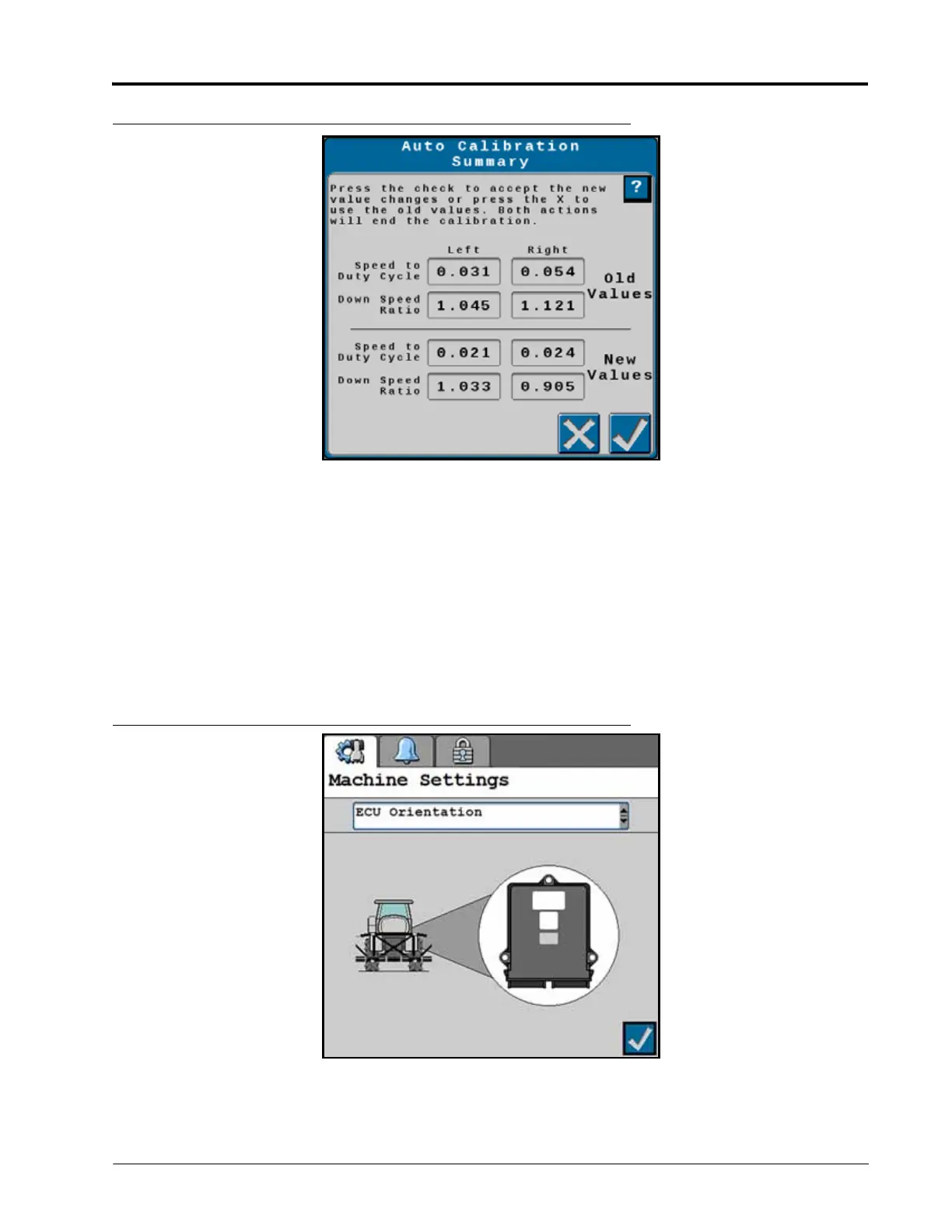

FIGURE 32. Auto Calibration Summary
RESET TO DEFAULTS
Selecting Reset to Defaults allows the user to reset AutoBoom XRT to factory default settings.
NOTE: Unlocks will not be erased during the reset.
ECU ORIENTATION
The ECU Orientation window displays the current orientation. To update the orientation, perform a Terrain
Compensation Calibration:
FIGURE 33. ECU Orientation
