STEERING SYSTEM INSTALLATION | CRX + SC1 | RAVEN EUROPE GENERIC
PAGE 21/36 | Installation manual | 016-8000-014EN | Rev. A1
1.3.8 WHEEL ANGLE SENSOR
For a correct operation of the Raven system a wheel
angle sensor is necessary. In various types of tractors a
factory fitted wheel angle sensor is already mounted in
the front axle. For different tractor types a ‘spy cable’ is
available at Raven to use the factory fitted wheel angle
sensor for the Raven system. When a spy cable is used
it is not necessary to install a Raven wheel angle
sensor. Ask Raven for more information about the
availability for a specific tractor brand or type.
1.3.9 MOUNTING SPY-CABLE
Take the following steps to mount a wheel angle
sensor spy-cable:
1. Follow the cable from the wheel angle sensor
on the front axle pf the tractor to the first
connection in this cable.
2. Disconnect the connectors.
3. Connect the spy-cable in between the
connectors.
4. Connect the wheel angle sensor 5M cable to
the M12 connector of the spy-cable.
5. Mount the spy-cable in a clean and dry
position (Figure 15).

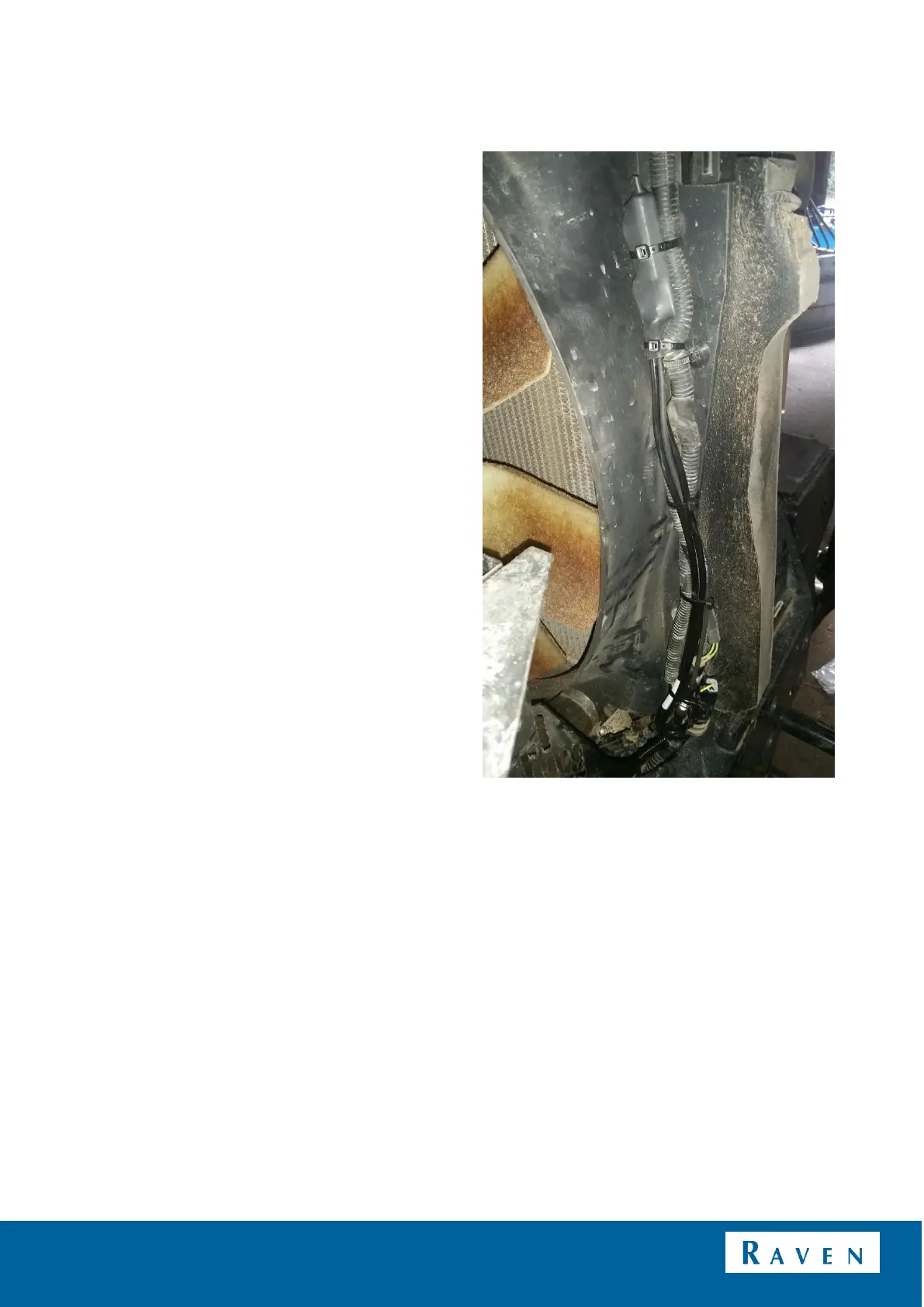

FIGURE 15 SPY CABLE MOUNTED ON A CNH
TRACTOR
