PAGE 30/36 | Installation manual | 016-8000-014EN | Rev. A1
STEERING SYSTEM INSTALLATION | CRX + SC1 | RAVEN EUROPE GENERIC
SMARTRAX MD
For mounting the mechanical drive unit (Figure 33),
some specific manuals are available. These manuals
are specific for the type of tractor.
Go to portal.ravenprecision.com to download the
correct manual. Click on Product Documentation in the
right top corner. Click on Guidance & Steering at the
left side, and click on SmarTrax MD. Search for the
right manual (Figure 34).
If there is no manual available for the tractor you want
to install SmarTrax MD please contact Raven Europe.

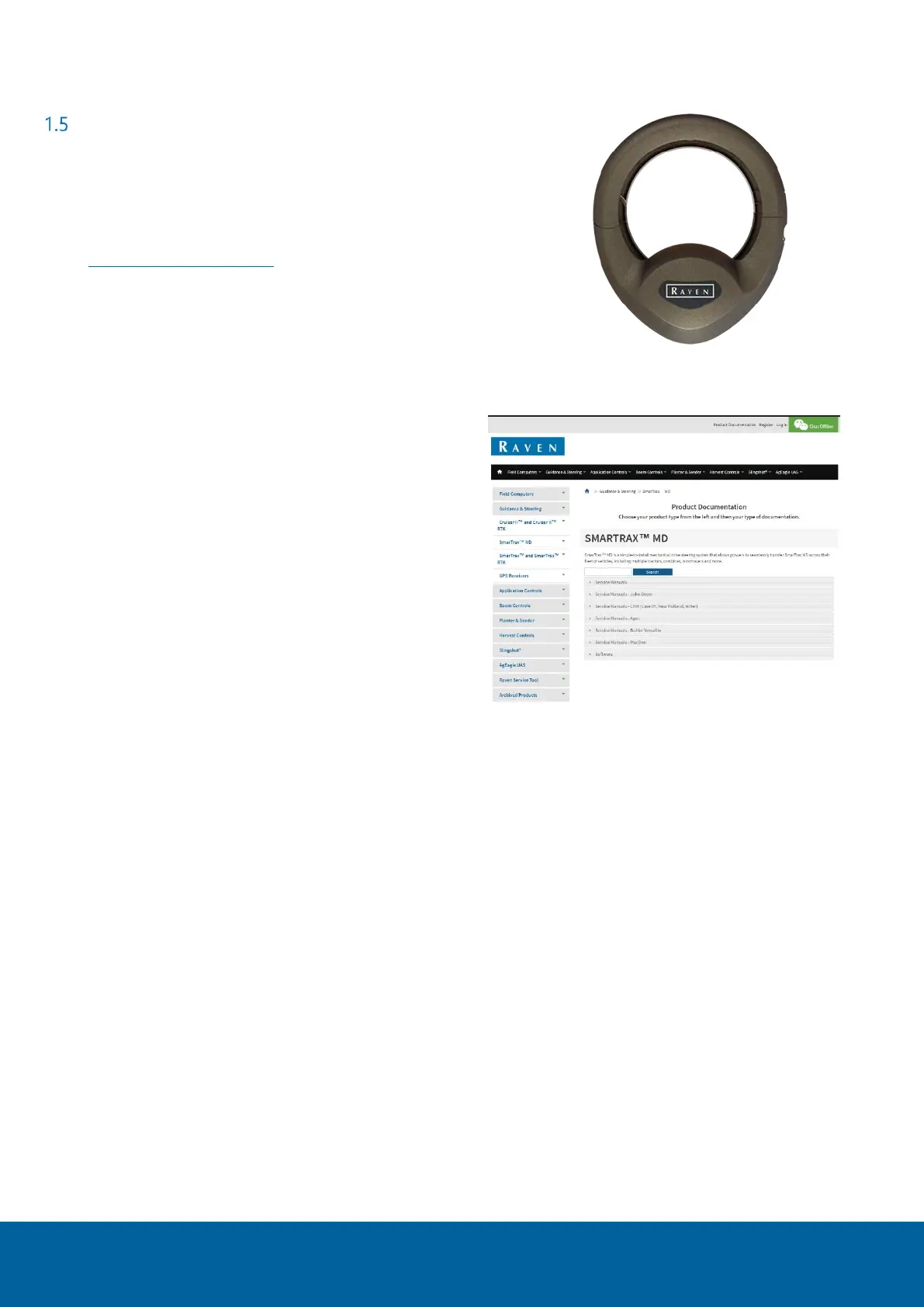

FIGURE 33 MECHANICAL DRIVE UNIT
FIGURE 34 PORTAL RAVEN PRECISION
