CALIBRATION
6. Wait for the calibration process to be completed before moving the vehicle.

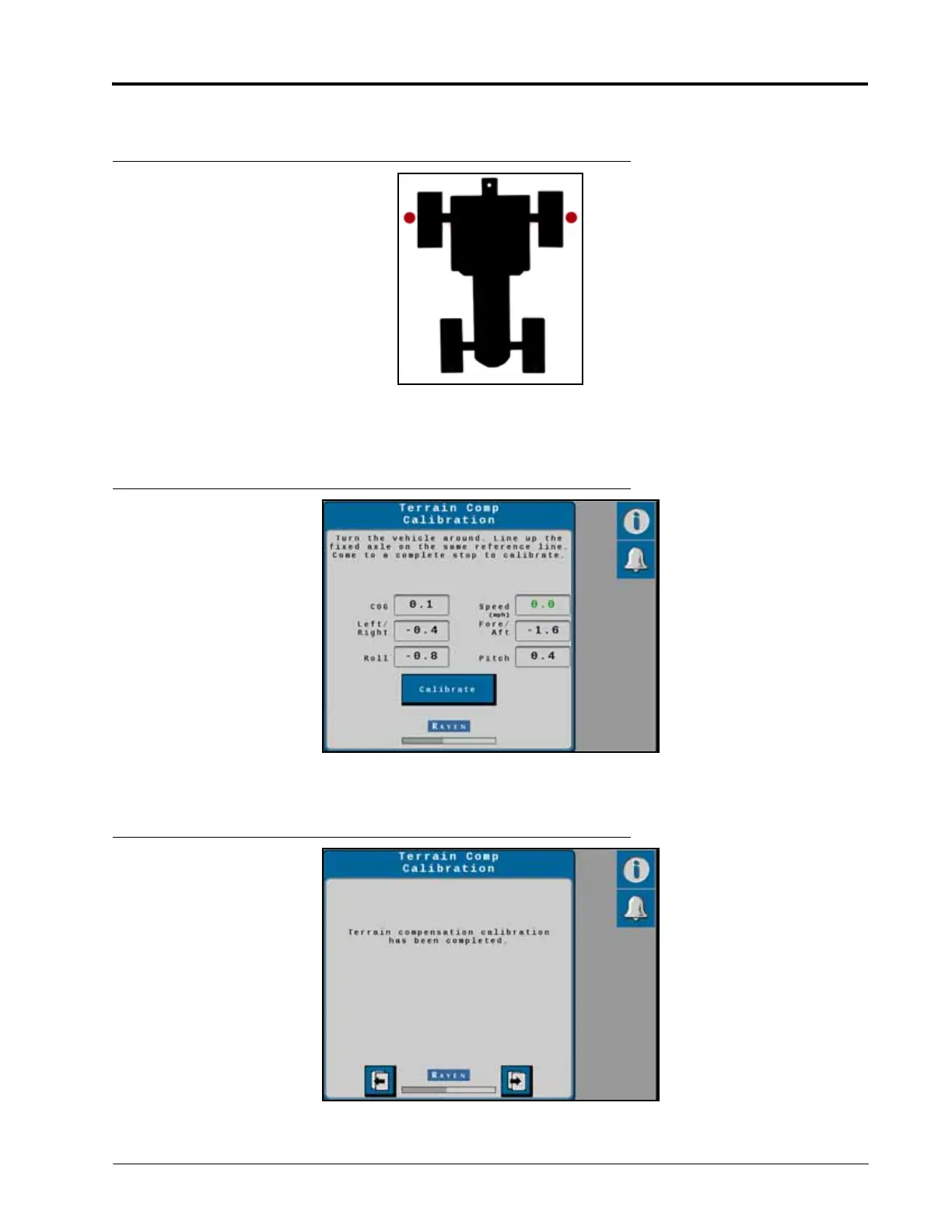

FIGURE 17. Machine Orientation After Terrain Comp Calibration
7. Turn the machine around 180° and park with the machine facing the opposite direction and the fixed axle in
between the flags or markers.
FIGURE 18. Terrain Comp Calibration Screen
8. Select Calibrate. Once the calibration is complete the following screen will appear.
FIGURE 19. Finish Calibration
9. Select the Next arrow. The Calibration Wizard Summary will appear:
