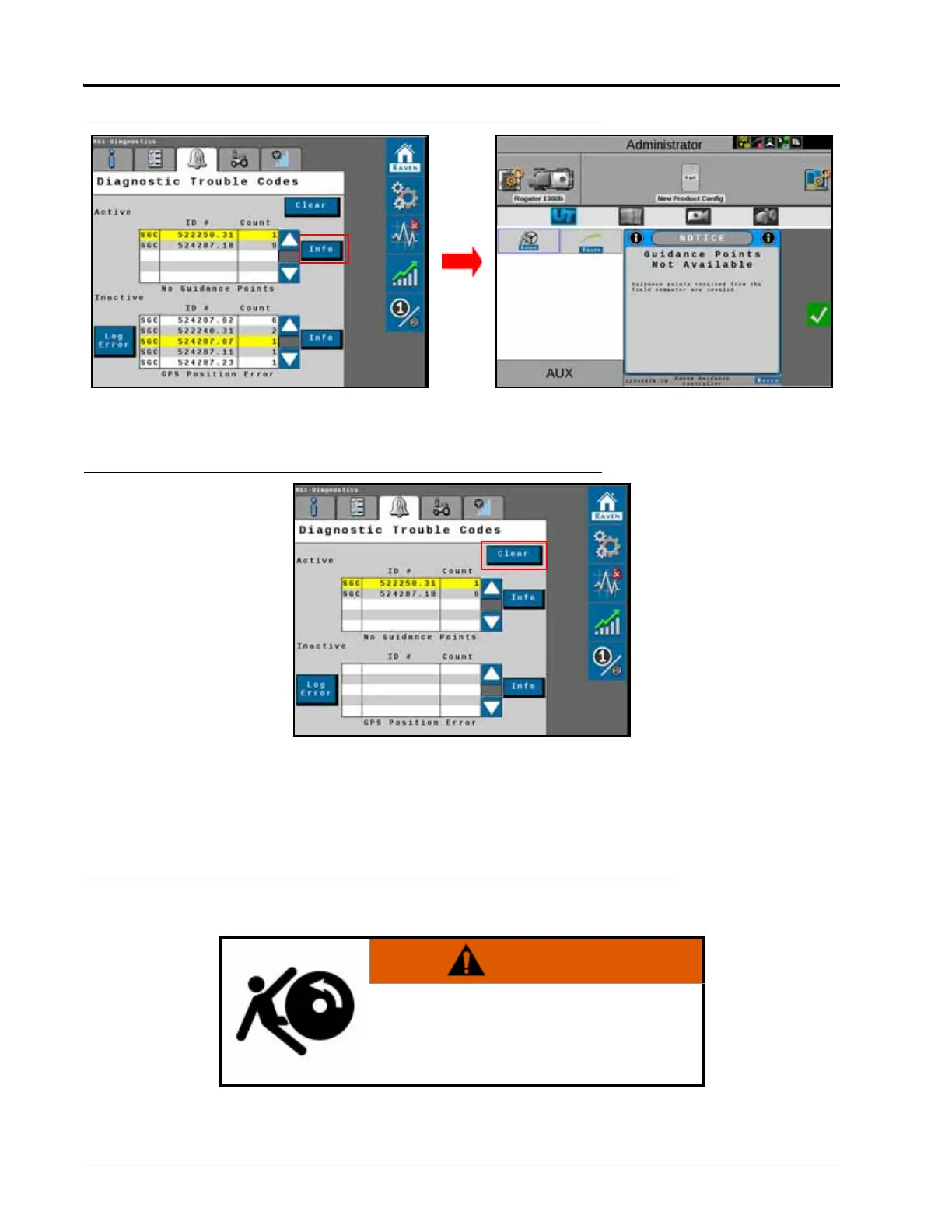

FIGURE 6. Info Screen
Pressing the Info button displays the complete description of the highlighted active DTC.
FIGURE 7. Inactive DTCs Cleared from Error Log
Pressing Clear deletes the inactive DTCs from the Inactive DTC error log. For a complete list of the RS1 DTCs, please
visit:
http://ravenprecision.force.com/knowledgebase/articles/Tech_Tip/RS1-Lights-and-Diagnostic-Codes/
SYSTEM HEALTH TESTS
WARNING
The machine’s wheels will turn automatically
while system heath tests are being performed. Be
sure the area around the vehicle is clear of
people and equipment before engaging the RS1
system.
