26 Raven RS1™ Guidance and Steering Calibration & Operation Manual

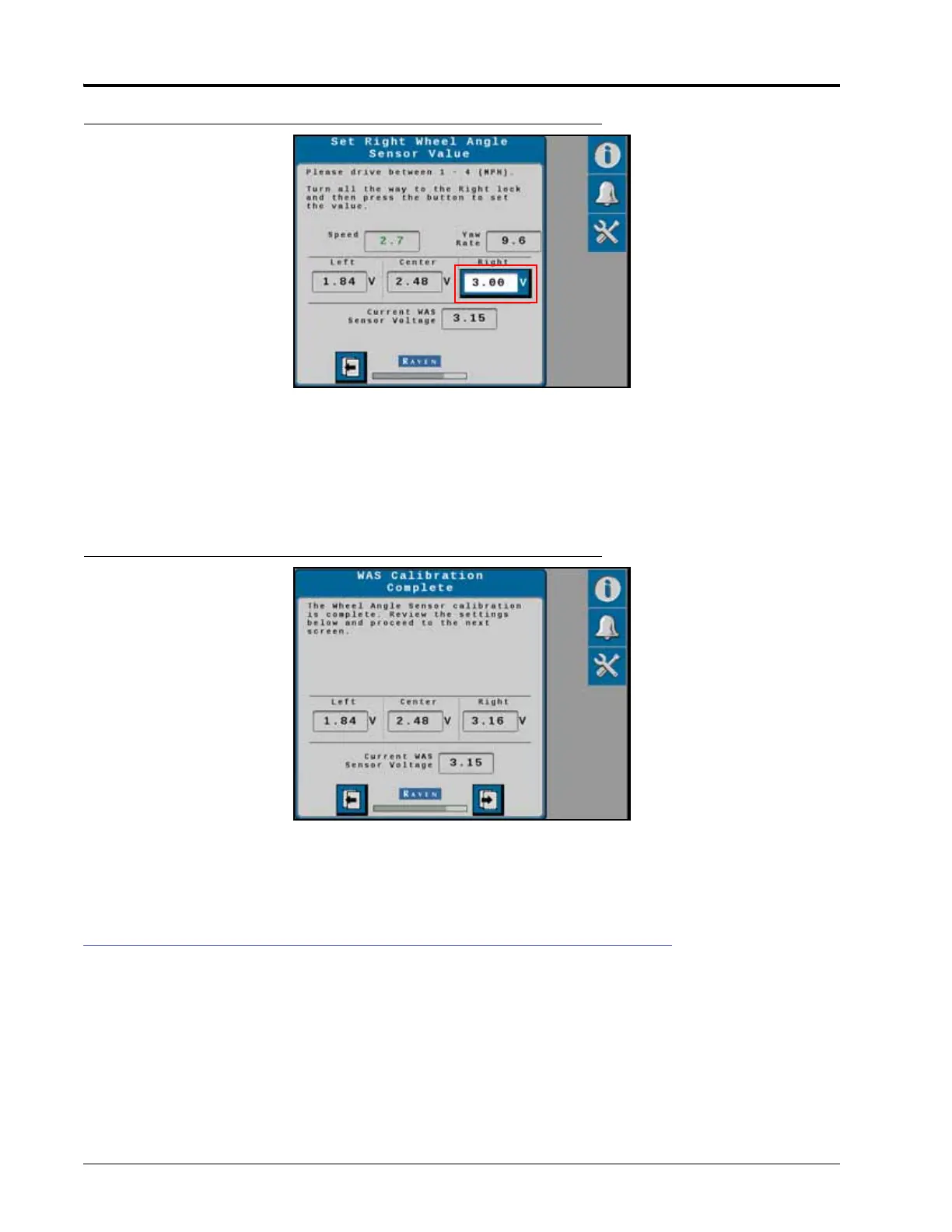

FIGURE 42. Right WAS Calibration Screen
6. Drive forward between 1 - 4 mph.
7. Turn the steering wheel all the way to the right steering lock.
8. Press the Right button to set the right WAS value.
NOTE: Do not turn the steering wheel until the following Calibration Complete screen is displayed:
FIGURE 43. Calibration Complete Screen
9. Review the WAS calibration information.
10. Press the Next arrow.
CALIBRATE THE MACHINE’S STEERING SYSTEM
NOTE: Although the RS1 steering and guidance system should be automatically calibrated to ensure optimal
system performance, the automatic calibration of the system can be bypassed by selecting the Use
Quick Calibration option. This causes the system to load default gains for the machine selected
during the calibration process.
The steering control calibration process allows the RS1 to learn the hydraulic capabilities of the machine for
optimal steering performance in the field.
