Raven CRX Calibration & Operation Manual

CHAPTER 10
66 Raven RS1™ Guidance and Steering Calibration & Operation Manual

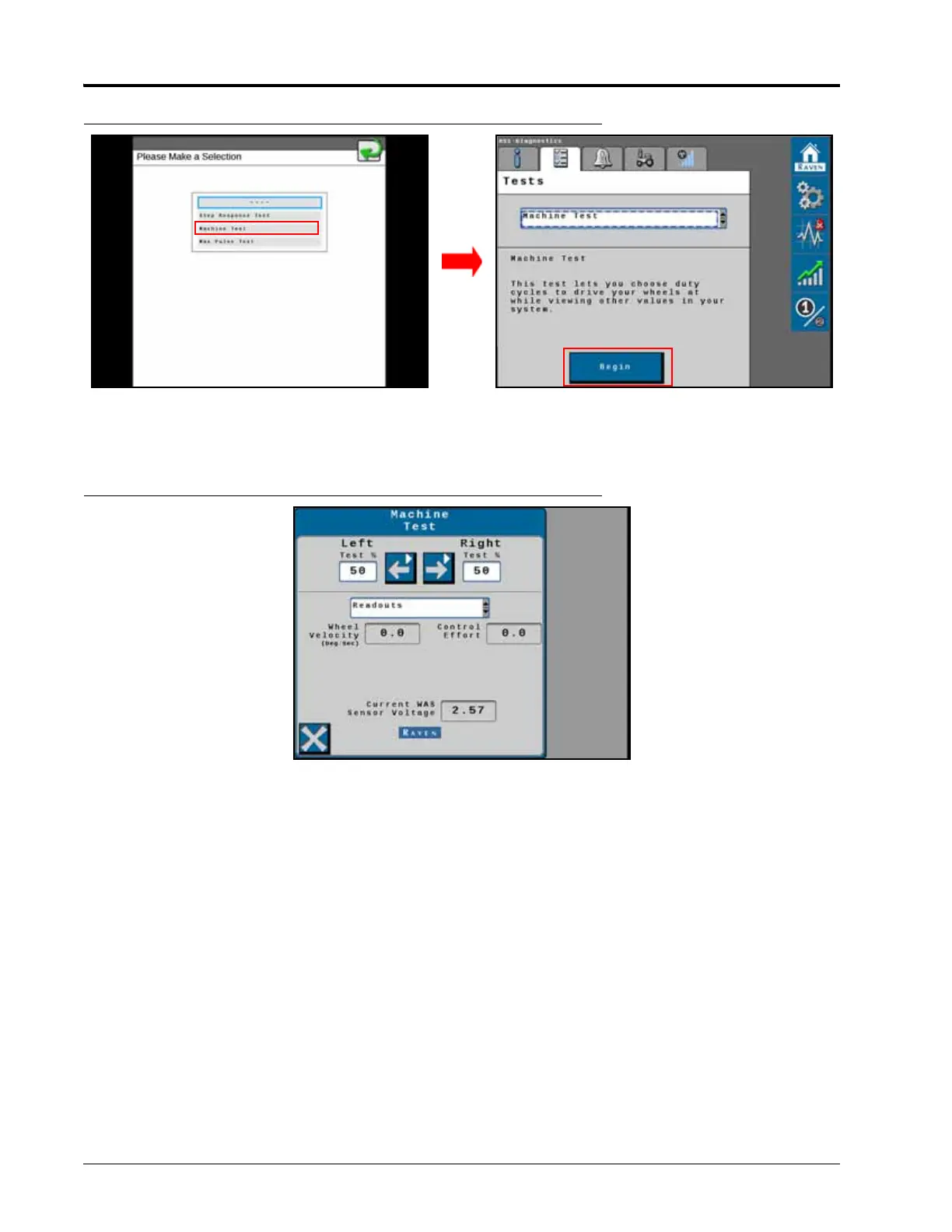

FIGURE 11. Machine Test Screen
1. Select Begin.
2. Enter the desired test drive value (0 - 100) for the side of the machine being tested.
FIGURE 12. Machine Test Screen
3. Press and hold the Left arrow or Right arrow buttons below the drive the wheels at the value that was selected.
NOTE: The wheels will begin to move once the Left or Right arrow button is pressed and held.

Raven CRX Specifications

General

Brand	Raven
Model	CRX
Category	Farm Equipment
Language	English
