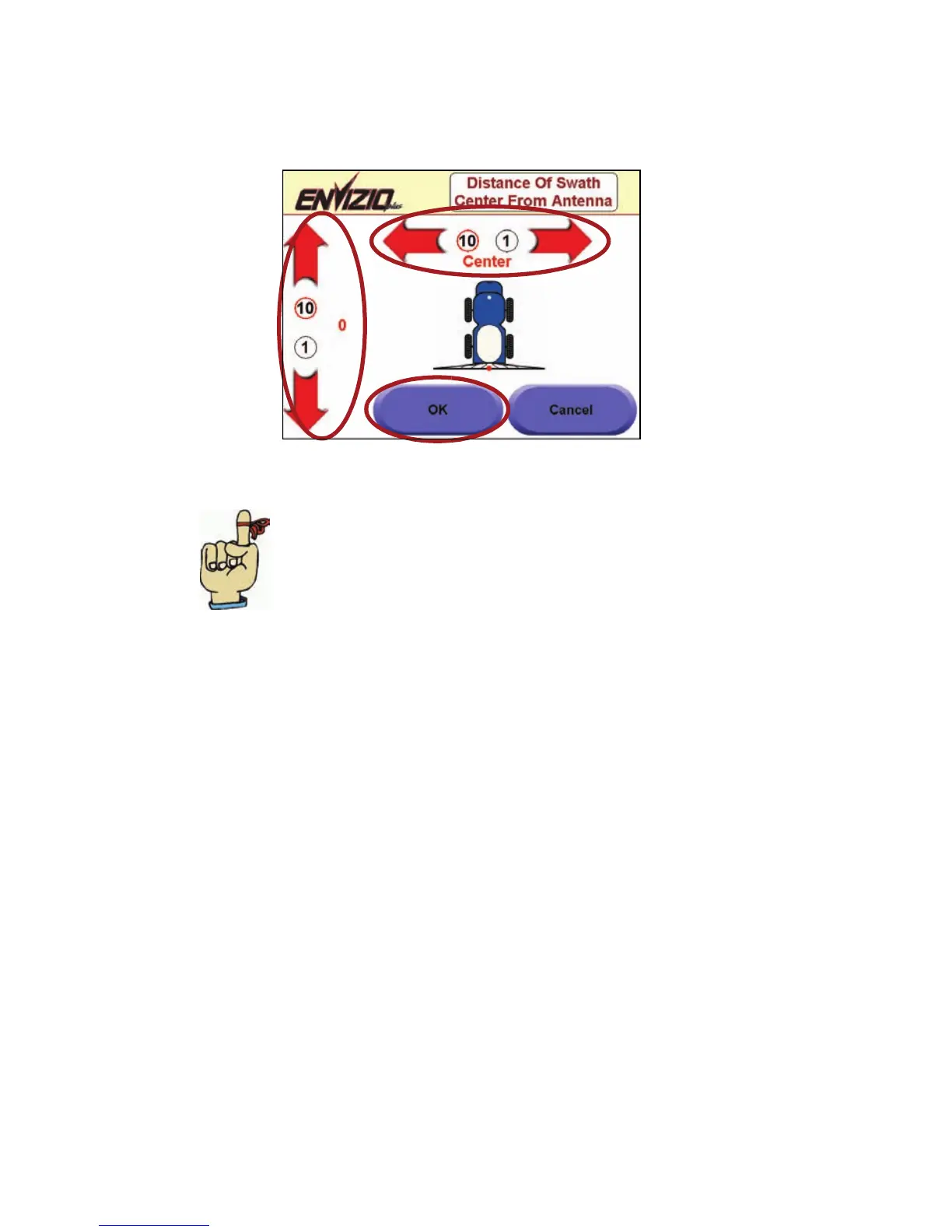

3. The second initial start-up screen, Antenna Position, displays. Touch
either the ‘10’ or the ‘1’ and then the right or the left red arrow or the
up or down red arrow to either increase or decrease the antenna
position in increments of 10 or 1. After you have set the desired
number, touch ‘OK’.
4. The Home Screen will display and you can begin guidance.
Helpful Hints:
• Normally the antenna position is set in
reference to the application location.
• If you touch ‘Cancel’ on either of the two
configuration screens above, you will be
prompted again to set these the next time you
power-on the Envizio Plus system.
• This is the overall boom width for guidance.
To configure individual booms, see the
configuration section.
