Envizio Plus LEDs and System Operation
The built-in lightbar and LEDs on the front of the Envizio Plus system show
guidance as well as system operation.
Lightbar LEDs

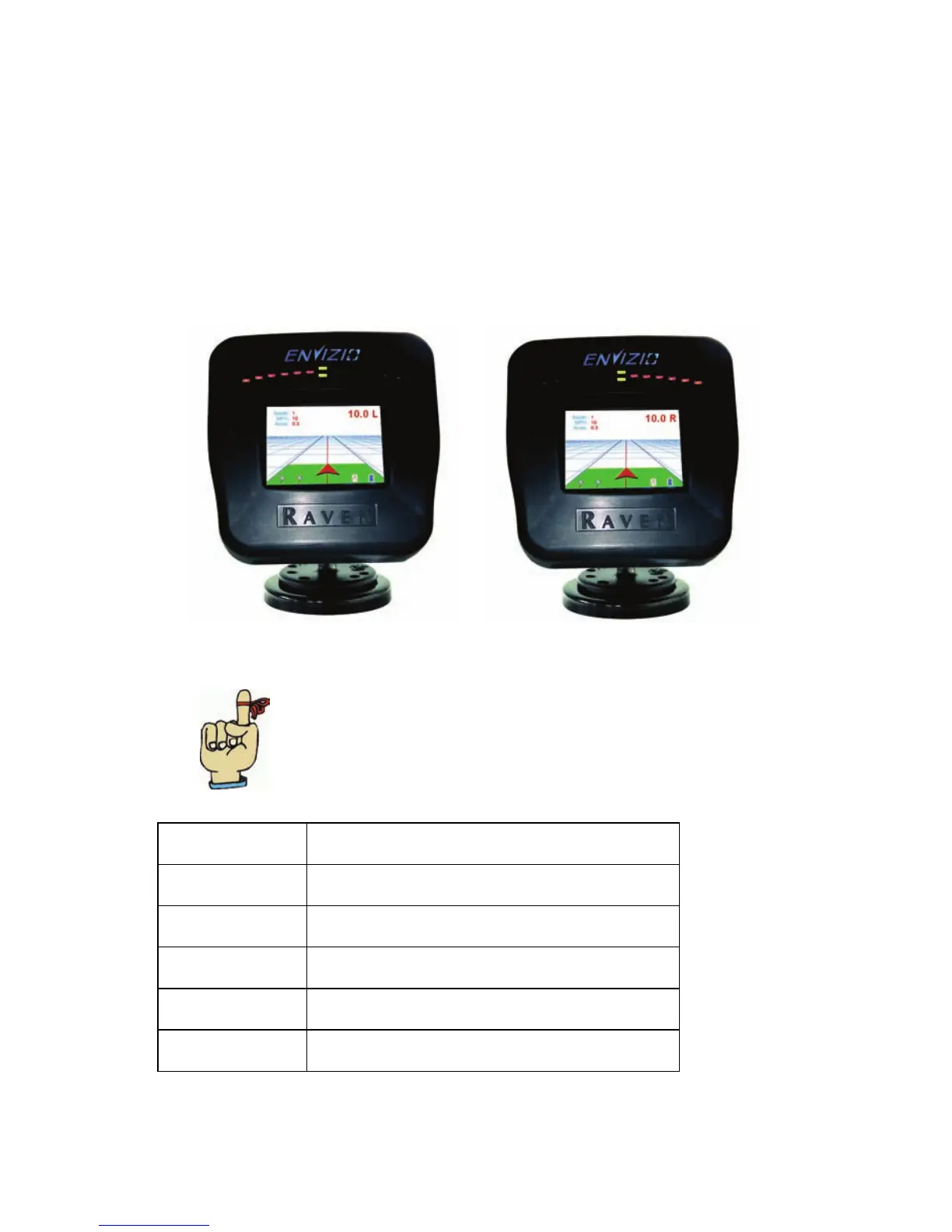

The built-in lightbar shows system guidance similar to that of an external
lightbar. Whichever side the lights are illuminated on, that is the direction
you should steer. Each light that is illuminated represents a
distance off-line. See the table below for these default distances, starting
from closest to the line going outward.
Remember: The values below are default values
and can be changed in the Lightbar Setup
Configuration screen.
1 LED 1 foot from the line
2 LEDs 2 feet from the line
3 LEDs 4 feet from the line
4 LEDs 6 feet from the line
5 LEDs 8 feet from the line
6 LEDs 10 feet from the line
