5

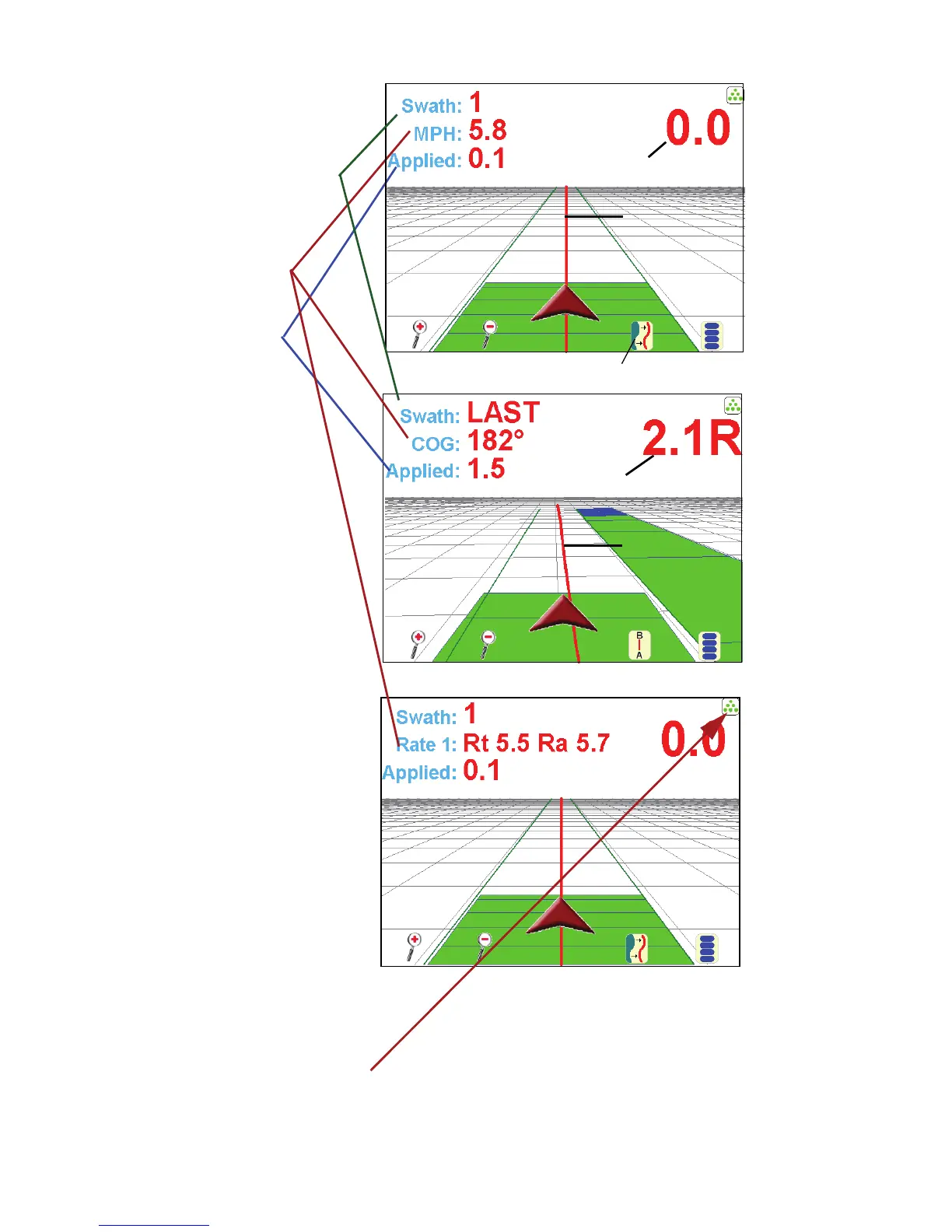

Job Screen Features and Areas
Swath Number or Mode
Coverage Area
Distance To Line
Green indicates that the booms
are on and coverage is being logged
A-B Line
Speed, Course
or Rates (if using a
Switch to this guidance pattern
Over Ground (COG),
Guidance Line
Distance To Line
Raven console.
(touch to toggle)
Touch to enable the
AccuBoom override
if using a CAN system
