Raven SCS 460 Installation Manual

2. Connect the CAN bus to the Controller.
a. Connect CAN Terminator P/N 063-0172-369 to one connector on
the Can Cable Adapter Tee With Power P/N 115-0171-368.
b. Connect the second connector on the CAN Cable Adapter Tee
With Power P/N 115-0171-368 to the CAN connector on the
Envizio or Viper interface cable.
The CAN bus system is now installed and CAN nodes may be connected
to it.

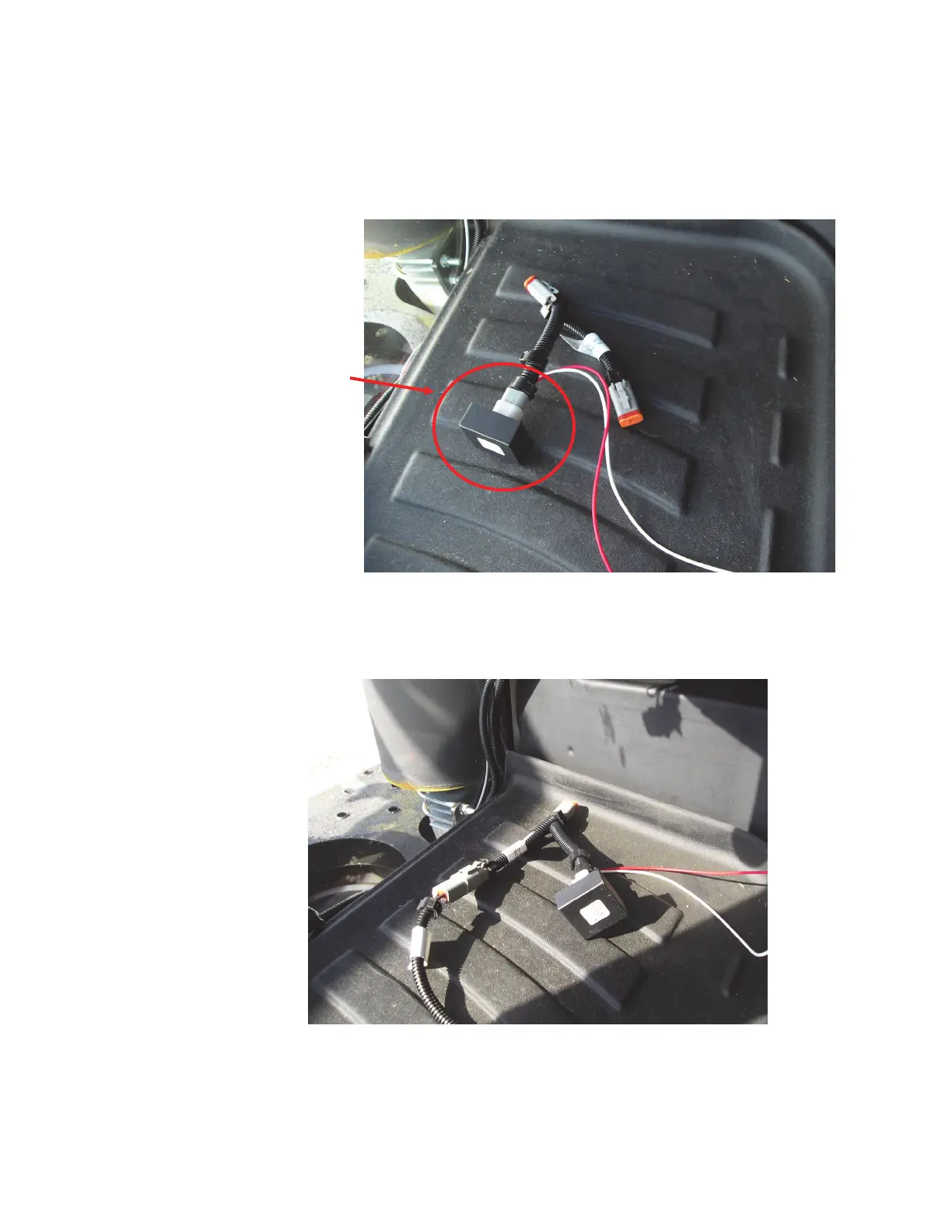

CAN Terminator
Manual #016-0171-073 Rev. C 01/17
8
