4. Connect the Master Switch Power to AccuBoom Node
(SCS460/660/661 Consoles only).

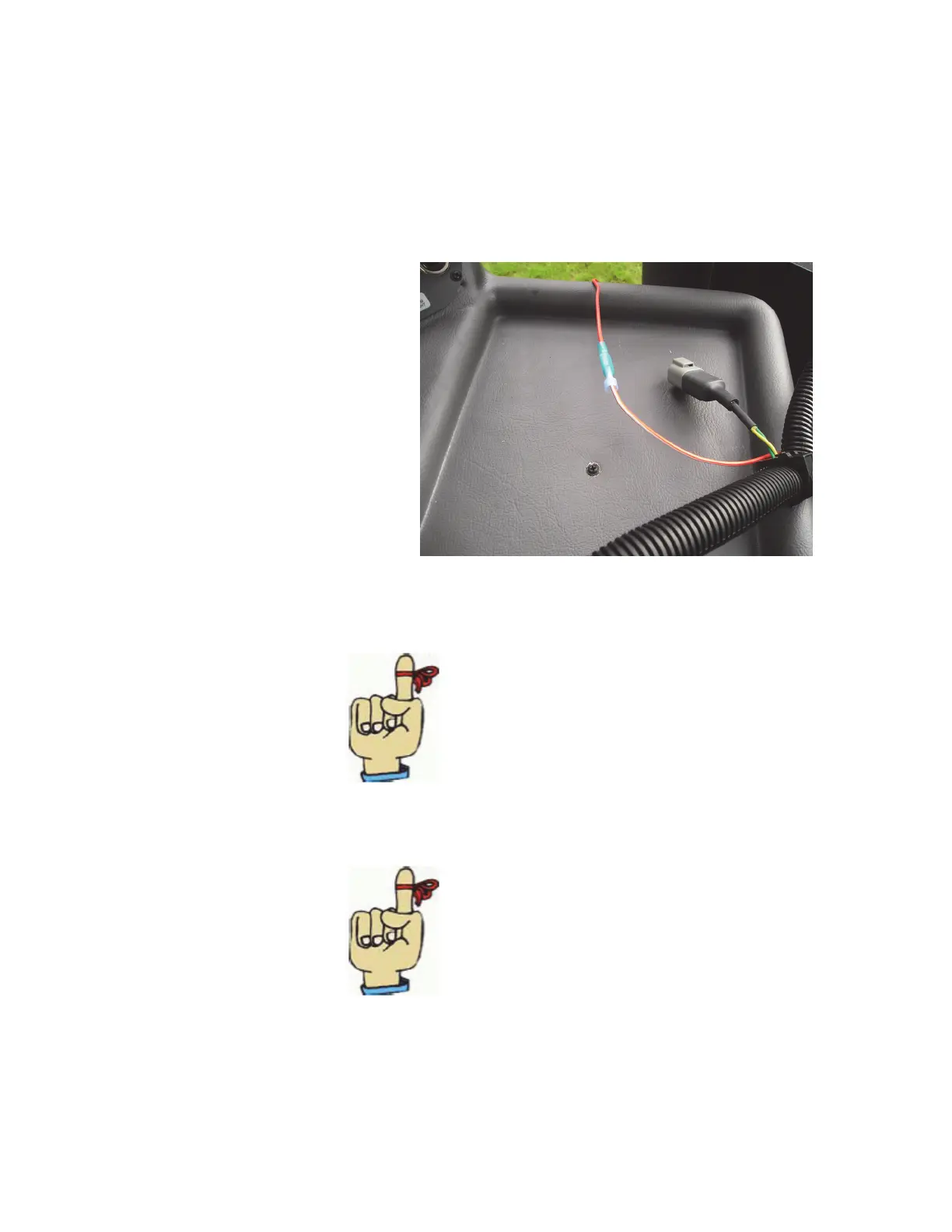

a. Install a male spade connector on the end of an 18 ga (minimum)
wire.
b. Connect the male spade connector to the female spade connector
coming out of the CAN AccuBoom/Serial Console Cable P/N 115-
1001-003.
c. Connect the other end of the wire to the output of the master
spread/hold switch.
Note: Raven SCS440/450 consoles have
the master switch in the control console.
The CAN AccuBoom/Serial Console
Cable P/N 115-1001-003 is pre-wired to
the master switch in the control console.
5. Connect the CAN AccuBoom cable to the CANBus system.
Note: If your system does not currently
have a CAN system installed, see the
CAN installation instructions in Chapter
3 of this installation guide.
6. The AccuBoom installation is now complete.
Manual #016-0171-073 Rev. C 01/17
6
