CHAPTER 4
24 RBR Enterprise Vector 300 LS/Venturi LS RS1/HDU Installation Manual

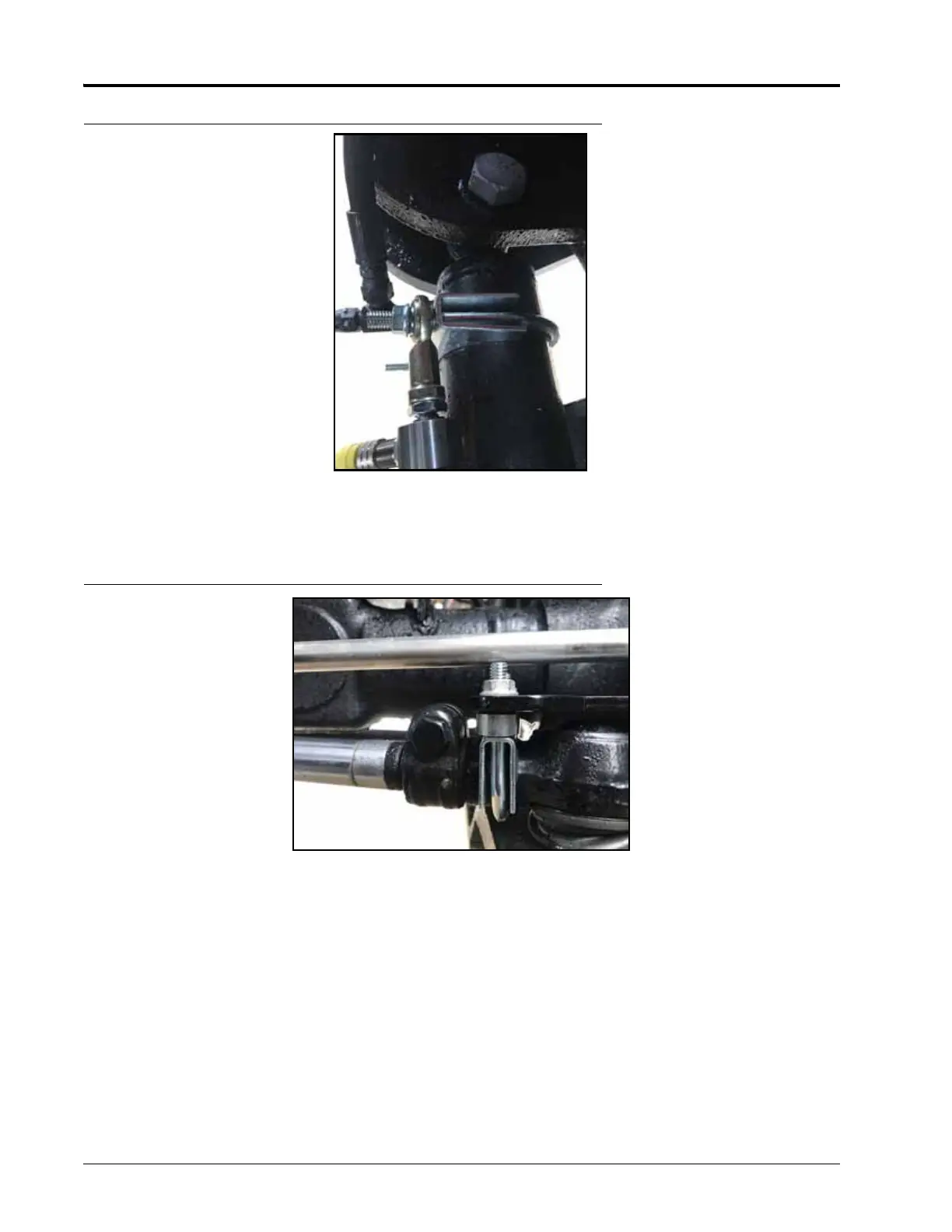

FIGURE 3. WAS and Clamp on U-Bolt
6. Remove the nuts and clamp from the 2” W x 5/16” - 18 U-bolt clamp.
7. Install the U-bolt clamp on the rod end of the left steering cylinder so the threaded ends of the U-bolt point up.
FIGURE 4. U-Bolt on Left Steering Cylinder
8. Use the provided hardware U-bolt, 3/8” long spacers, and 5/16” washers to install the WAS Rod mounting
bracket.
9. Use the provided M10 x 60mm bolt, M10 lock nut, and 3/4” spacer to install the WAS rod end of the WAS rod
mounting bracket in the middle hole of the WAS rod mounting bracket.
