Cab Component Installation: Valve Cable 35
CAB COMPONENT INSTALLATION

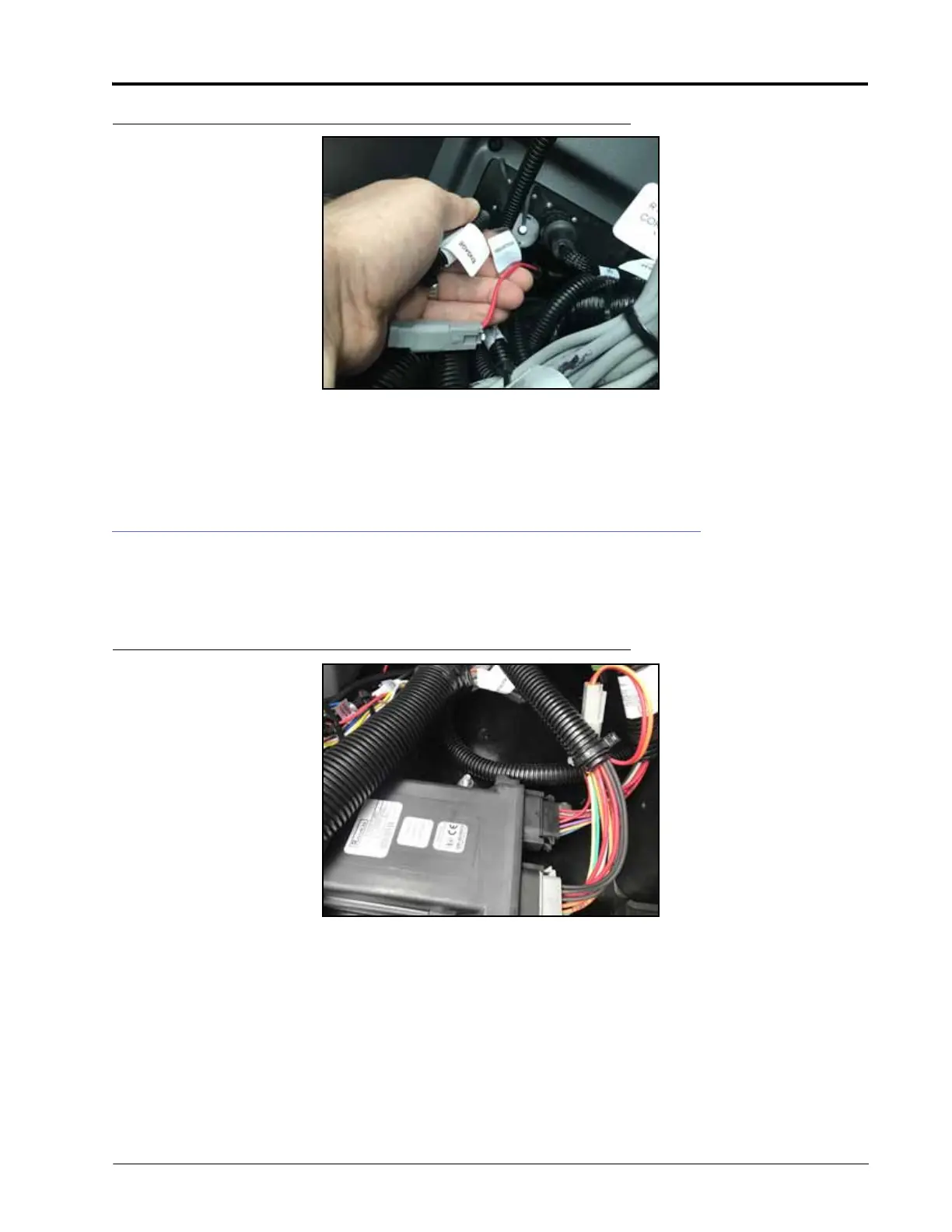

FIGURE 17. 2-Pin Engage to SMARTTRAX Cable
NOTE: The two 12-pin Deutsch connectors on the HDU Switch cable are not used for this installation. Zip tie
the two cables together and place in a convenient location.
VALVE CABLE
1. Identify the HDU Valve cable (P/N 115-4010-044).
2. Connect the 12-pin connector on the HDU valve cable to the mating connector on the HDU.
FIGURE 18. 12-Pin HDU Connection
3. Connect the 2-pin connector on the HDU valve cable into the mating connector on the HDU cable.
