36 RBR Enterprise Vector 300 LS/Venturi LS RS1/HDU Installation Manual

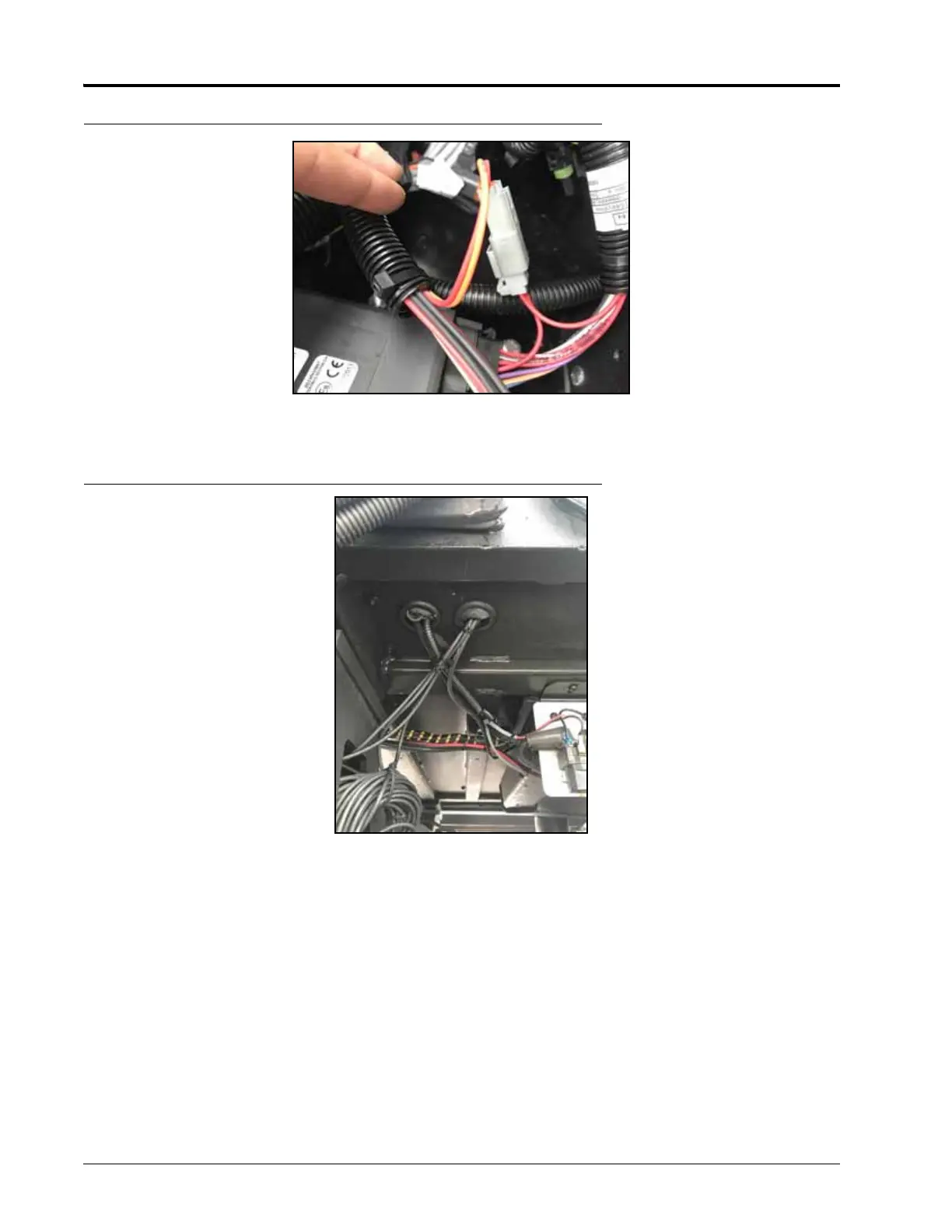

FIGURE 19. 2-Pin Connector on the HDU Valve Cable
4. Route the HDU valve cable outside of the cab using the circular hole in the cab floor.
FIGURE 20. Feeding HDU Cable out of Cab
5. Route the HDU valve cable to the steering valve.
6. Plug the 3-pin connector into the pressure transducer and the 4-pin connector into the valve.
