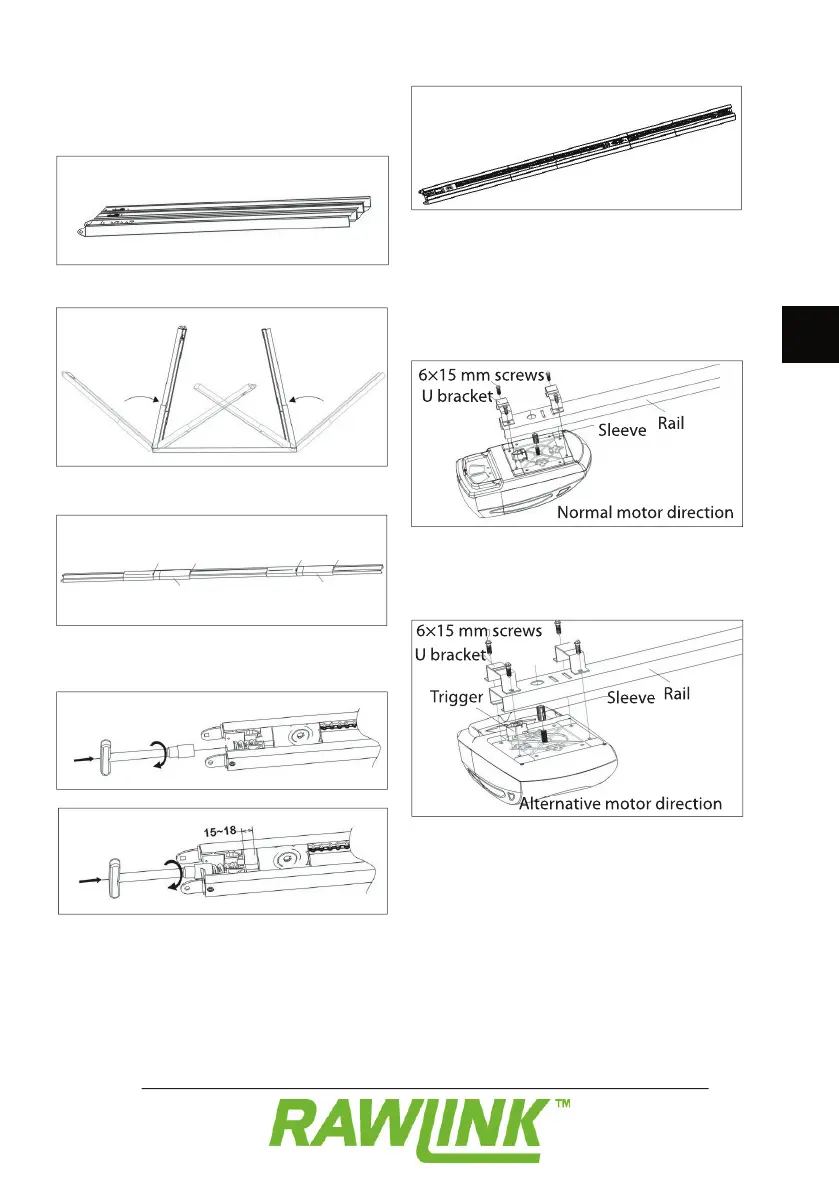

Set the couplings around the joints.
Tighten the nut on the end stop using a
socket wrench, allowing a gap of 15-18 mm.
The rail is now ready for installation.
Set the collar on the motor shaft. Fit the
motor casing (8) to the rail (4) using two U
brackets and four 6×15 mm screws, so the
light (9) points away from the rail.
If there is a shortage of space at the
installation site, the motor can be turned a
Please note that you must move the switch
Alternative motor direction
