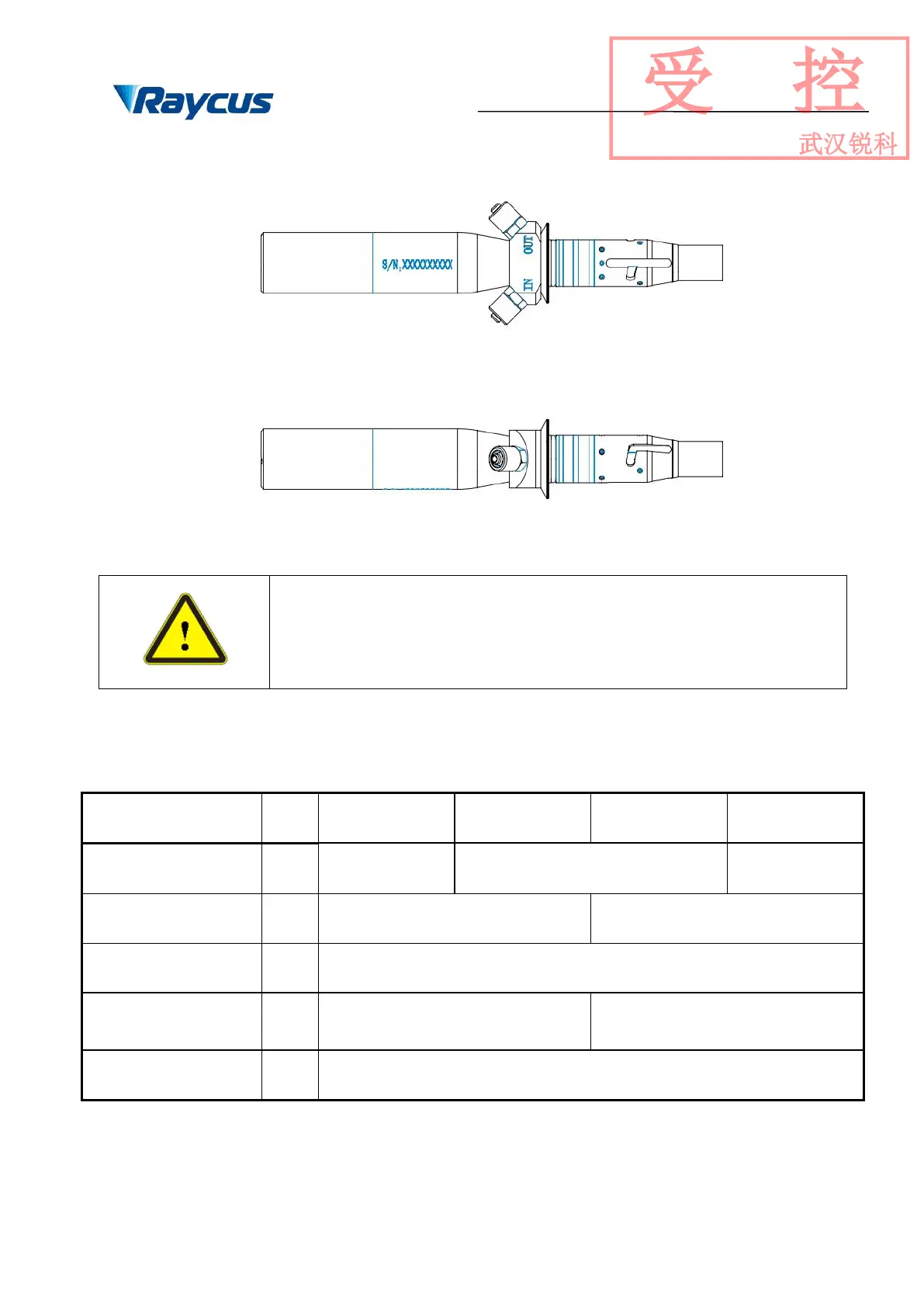

Figure 4RFL-QBH Output Head(unit: mm)
 Inspect the output lens before installing the output head to the processing head.
wipe the output lens with absolute alcohol if it is unclean.
 It is strictly prohibited to disassemble the output head by personnel notapproved
by Raycus, or the warranty is void.
3.3 Cooling Requirements
Table6 Cooling Requirements
Parameters
unit
RFL-A500D
RFL-A1000D
RFL-A1500D
RFL-A2000D
Cooling Capability
W
≥1500
（1HP）
≥3000
（1.2HP）
≥4000
（1.6HP）
Minimum Flow
L/min
8
10
Maximum Pressure
Bar
4~6
Pipe Outside Diameter
mm
Fast-plug Connectors(Φ10) or
Pagoda-Shape
Connectors(outerdiameter 15)
Water Pipe outer diameter 12
Water Chiller Categories
/
Dual-temperature Control
