Wuxi Raycus Fiber Laser Technologies Co., Ltd.
User Guide of Raycus 500W～2000W laser
18
One end of the power cord is a plug, insert it into the socket 'AC INPUT' onthe rear panel.
500W and 1000W lasers’power line consist of three lines,L,N and PE, Connected to the
220VAC.
1500W and 2000W lasers’power line is made up of four lines,L1,L2,L3 and PE, Connected
to the 380VAC.
4.4 Interface Definitions
4.4.1 SERIVCE Security Interface

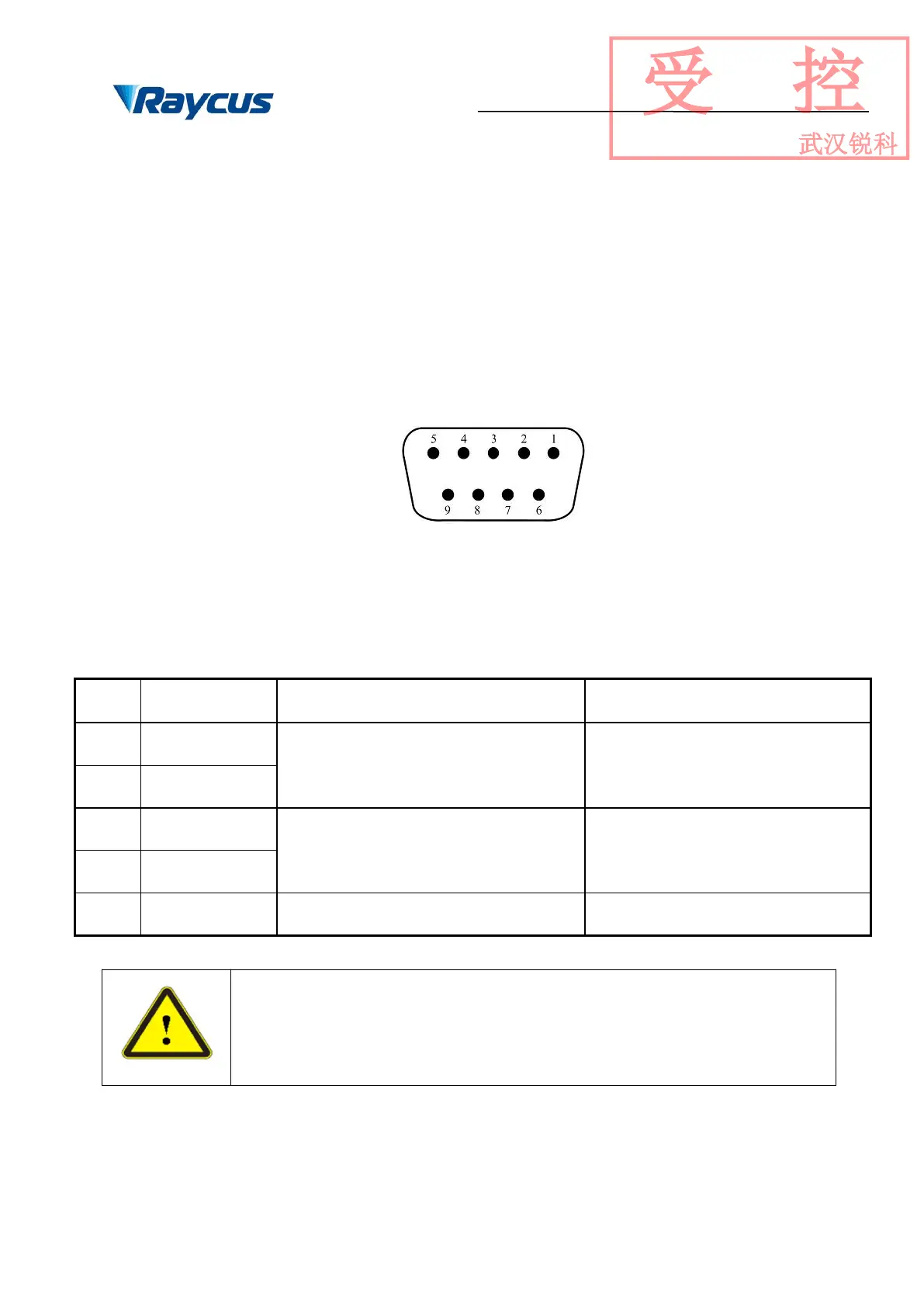

Figure 7 SERIVCE Security Interface
Each pin is defined as shown in table 7 below.
Table 7 SERVICE definition
Remote switch, Passive contact, Can’t be
connected to external voltage or ground.
Short-circuit the pin 1 andpin 2 can
power up the laser
Passive contact, Can’t be connected
to external voltage or ground.
Short-circuit the pin 6 and pin 7 before
emitting laser
The interlock cannot be connected to active signal, or errorwill be caused, or even
the product may be damaged.
4.4.2 Modulation Input
The 24V modulation signal should be applied to the connector as in Figure 8.
