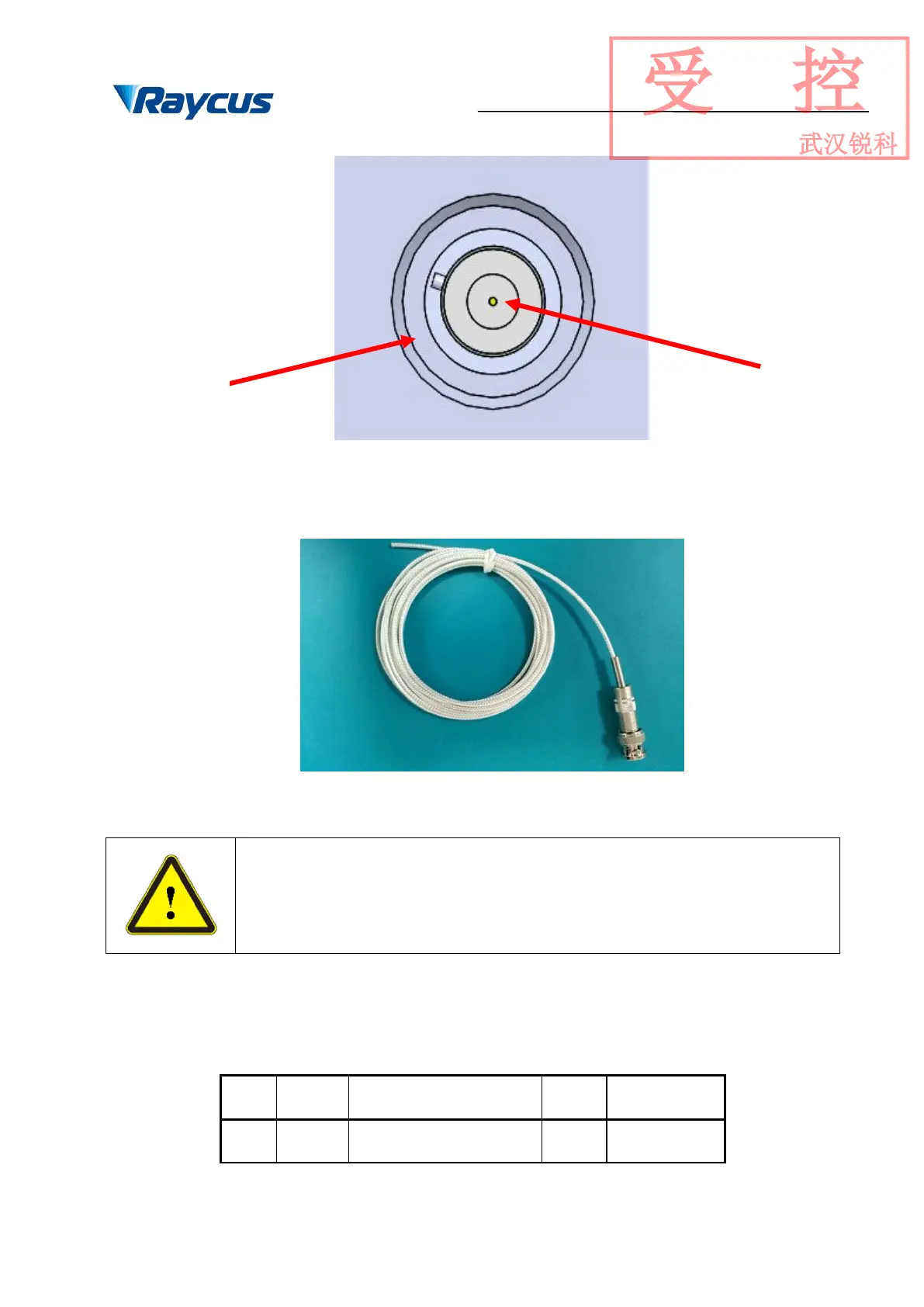

Figure 8 Modulation Input
Raycus provide MOD Cable, as shown in figure 9.
Figure 9 MOD Cable-The Cable for Modulation Signal

The modulation signal cable core is positive (24V) and the external metal mesh is
negative (GND).

Before the modulated signal is connected to the laser, please check the level.
MOD definition is shown in table8.
Table 8MOD definition
Name
OUT/IN
Function
voltage
current
MOD
Input
External modulation signal
24V
10mA orabove
+
-
