User Guide of Raycus 500W～2000W laser
20

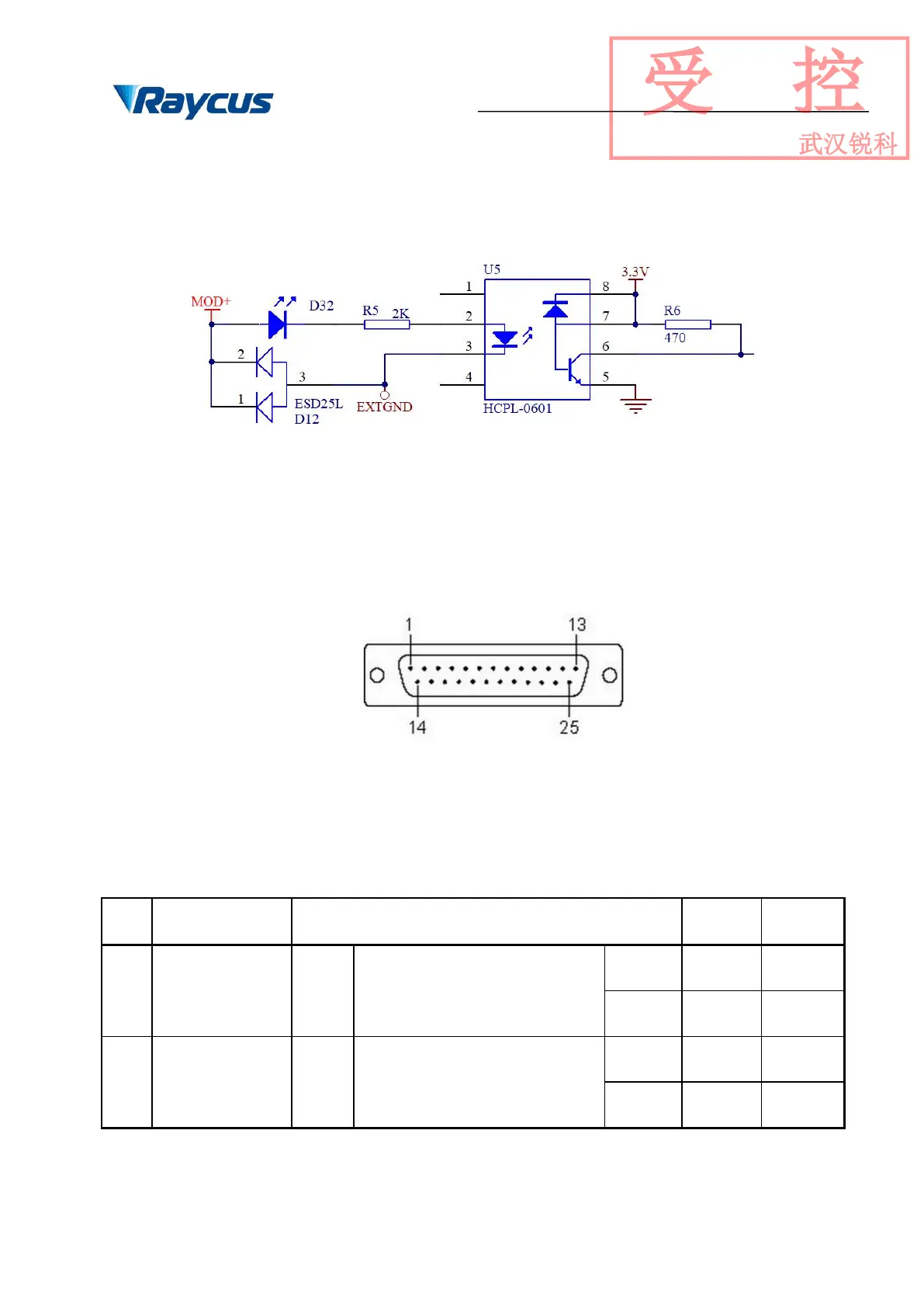

The internal circuit of the modulation signal is shown in figure 10.
Figure 10 The Internal Circuit of The Modulation Signal
4.4.3 Control Interface
The pin number of‘CTRL-INTERFACE’is shown in figure 13
Figure 11DB25 Control Interface
The definitions of the control interface are as follows:
Table 9 Control Interface Definitions
PIN
Name
Functions
Voltage
Current
6
LASER_EN
Input
Enable signal
Enable
24V
＞8mA
Disable
0V
/
7
AD_EN
Output
External AD model enable
Enable
24V
＞8mA
Disable
0V
/
受 控
武汉锐科
