User Guide of Raycus 500W～2000W laser
17
4.2 Rear Panel

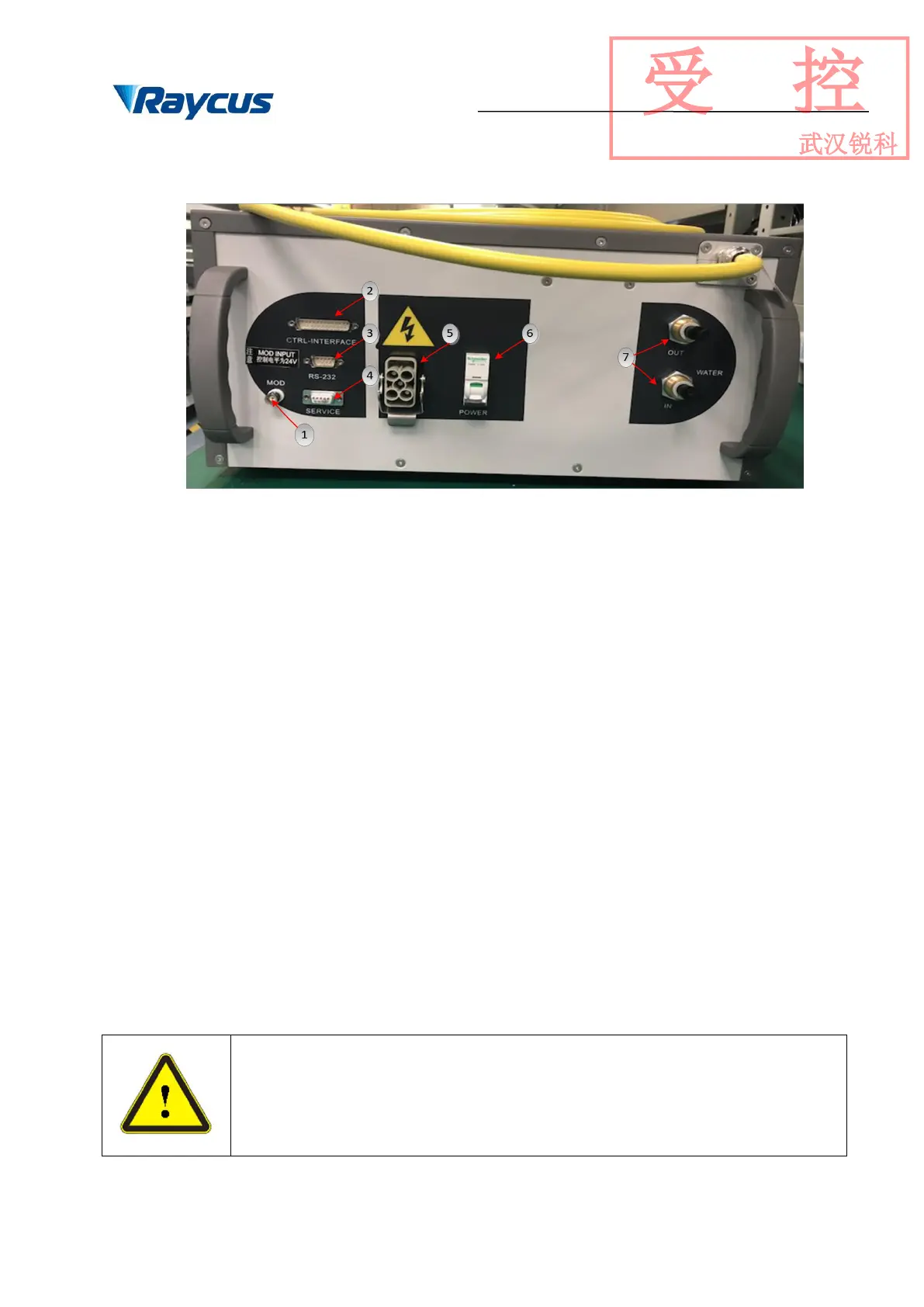

Figure 6Rear View
① MOD: Modulation input, Bayonet Nut Connector can apply to switch to disable or enable
the laserto emit laser light. The control signal should be able to apply current over 10mA,
and the voltage should be 24V.
② CTRL-INTERFACE: Control interface, DB25 plug, GPIO, user can set control mode. Input
analog voltage signal, trouble signaloutlet.
③ RS-232: RS-232 serial port, Provide remote control and alarm information storage for the
laser.
④ SERVICE: The laser switch and security interlocking interface
⑤
AC INPUT: AC in connector, mustuse the plug offered by Raycus.
⑥ POWER: Air switch, that open or close the electric circuit.
⑦
WATER IN/OUT: Water pipe connectors, the inlet and outlet for cooling water to flow in
and return
4.3 Power Connection
Before connecting the product to AC supply source, you must check up that
the AC supply you will apply is in accordance with the specifications
provided.
