4 Using the Product
Raycus CW fiber laser has stopped using theHyperTerminal, so the HyperTerminal
will notworkwhen thelaser is powered on. Please clip the address below to
downloadthe latest PC software and the relevant manual.
http://www.raycuslaser.com/index.php/index-show-tid-53.html
4.1 Front Panel

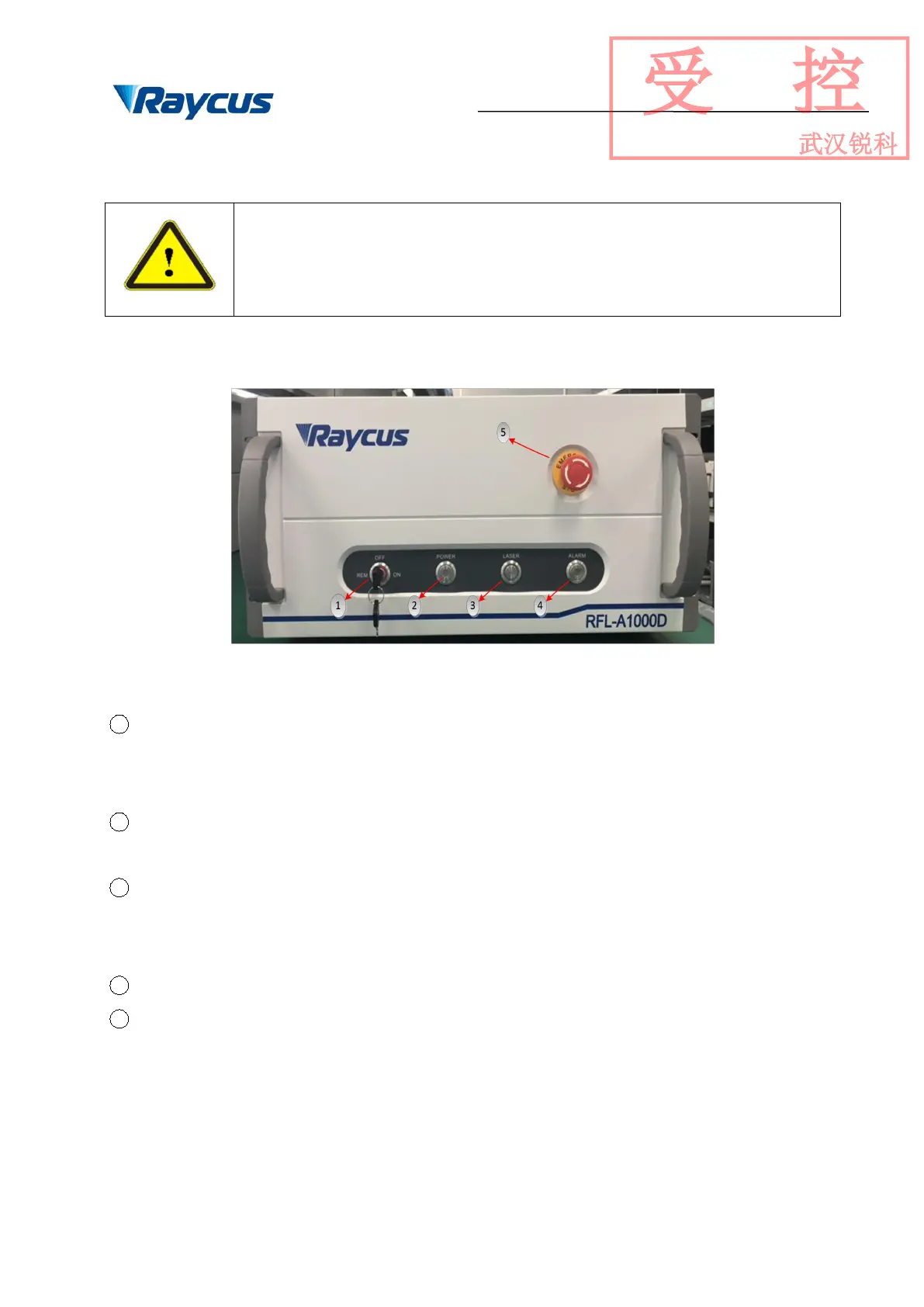

Figure 5 Front View
1 REM/OFF/ON: Key switch - laser’s power switch. Insert the key and turn it to ‘ON’
position or ‘REM’ position to turn on the laser. The system will enter control mode
according topreviously programme and subsequent operations in ‘CTRL-INTERFACE’.
2 POWER: Power Indicator, indicates that the power is switched on, when the green LED
illumines.
3 LASER: Activate button for laser emission with red ring light. Under internal and external
control mode,press the button then laser will emit laser light and red ring light is on. Press it
again, the laser do not receive enable signal for emitting laser light and red ring light is off.
4 ALARM: Alarm indicator, YELLOW, indicates an error condition.
5 EMERGENCY STOP: Press the button can shut off the laser and locked. Rotate clockwise
it to release. To return to normal working condition, user must repower it by key switch.
