Raycus RFL-A500D User Manual

Wuxi Raycus Fiber Laser Technologies Co., Ltd.
User Guide of Raycus 500W～2000W laser
21
8
Laser Ready
Output
Ready signal
YES
24V
＜100mA
NO
0V
/
9
EX_GND
/
Reference6,7,8,20,24GND
/
0V
/
20
EX_VCC
Input
24V（power for PIN8 and PIN24）
/
24V
＜500mA
22
Analog
Input
Analog Voltage Signal
/
0V~10V
＞10mA
23
Laser Power
Output
Power indication
/
0V~3.8V
＜10mA
24
Alarm
Output
Fault Signal
Fault
24V
＜100mA
normal
0V
/
25
AGND
/
GND of PIN22, PIN23
0V
/
other
NC
/
None
/
/
 Please check the control voltage level and ensure that the level is inaccordance with
the requirements. Over voltage and voltage ripplemay damage the product.

Make sure that the analog voltage signal does not exceed 10V, otherwise the product
may be damaged.

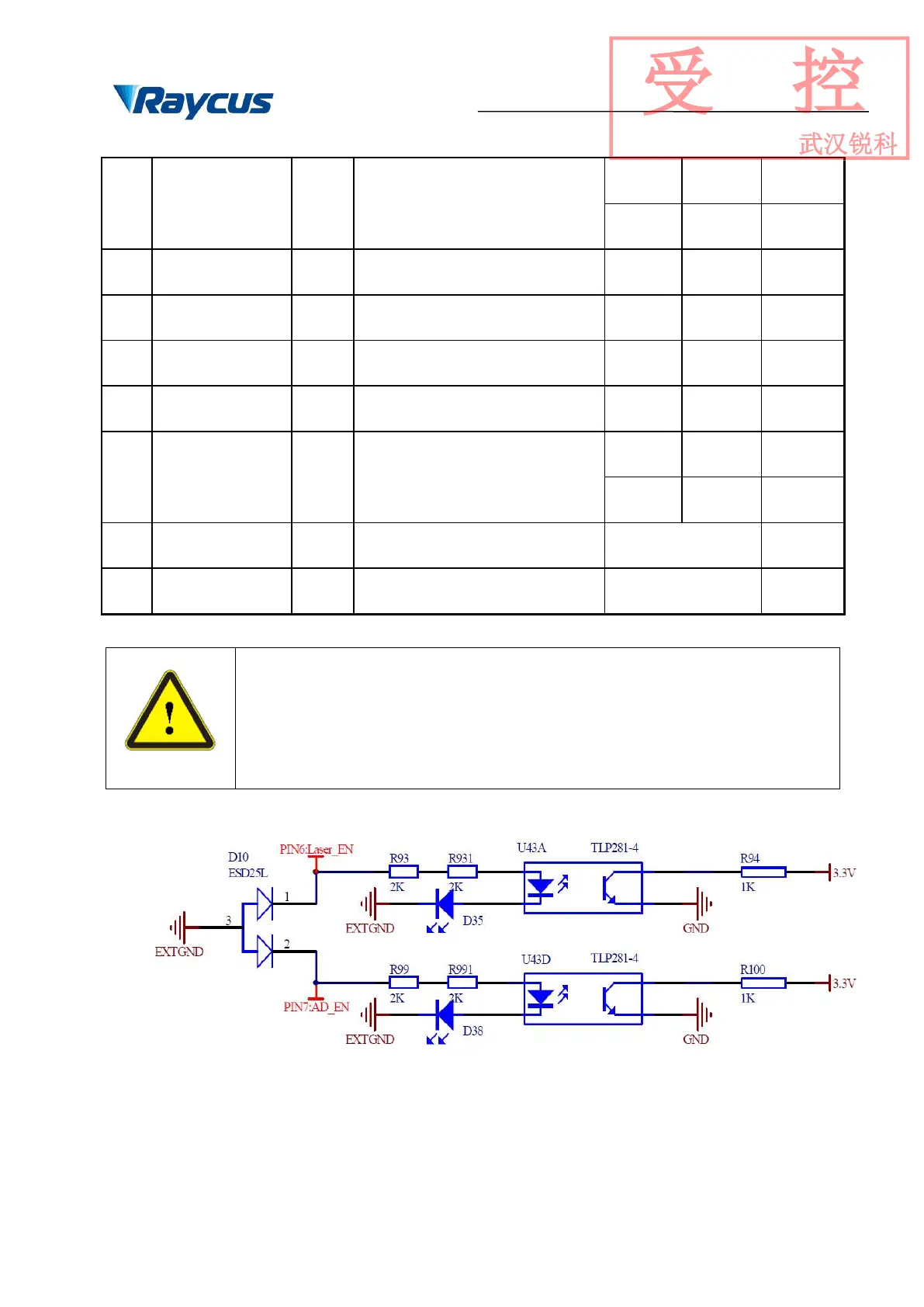

Figure 12 PIN6、PIN7 Internal Circuit
受 控
武汉锐科
