User Guide of Raycus 500W～2000W laser
22

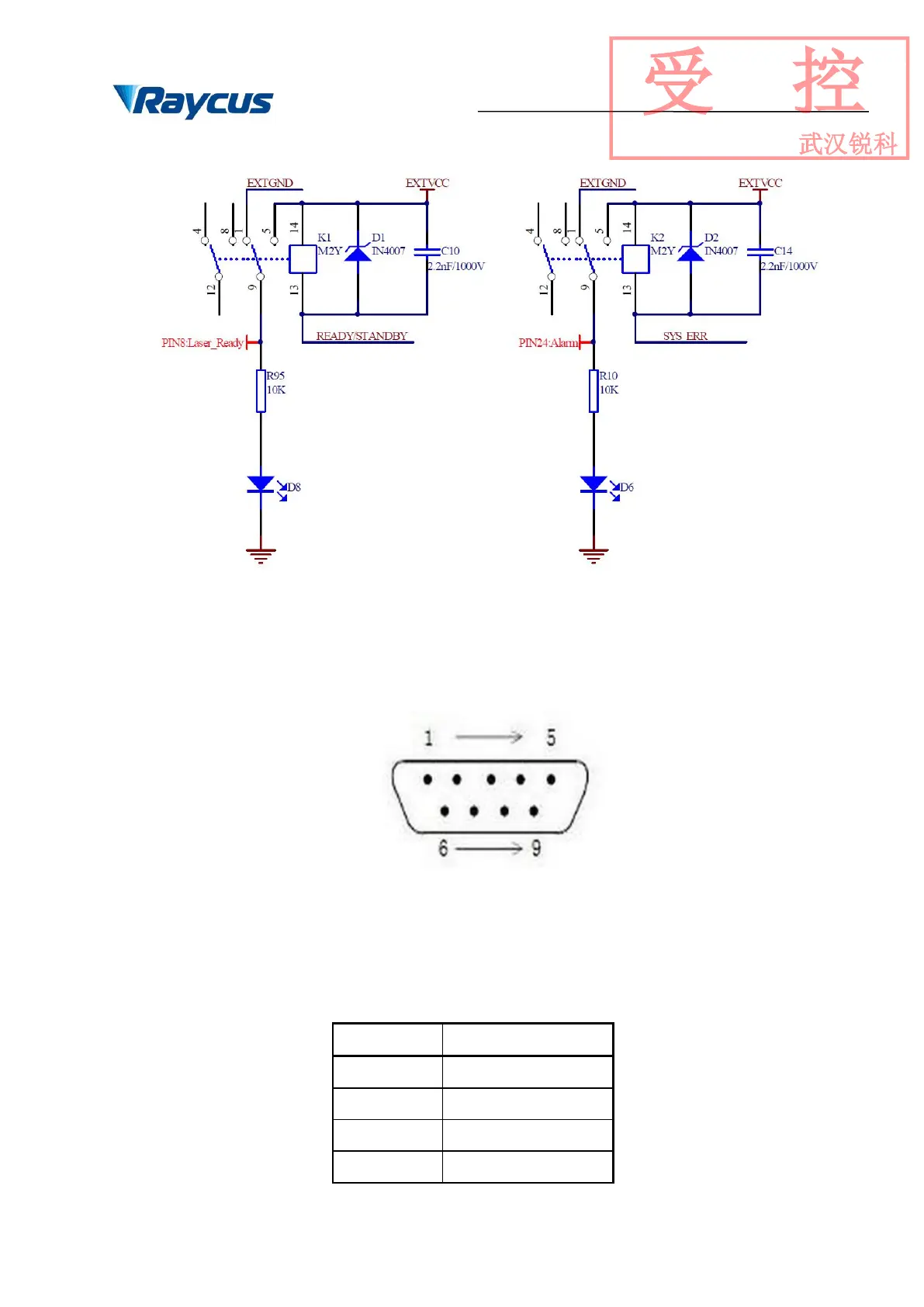

Figure 13 PIN8 and PIN24 internal circuit
4.4.4 RS-232 Serial Port
Figure 14 shows the pin number of RS-232 serial port:
Figure 14Pin Number of RS-232 Serial Port
And the definitions of the pins are in the following table:
Table 10RS-232 Serial Port Definitions
PIN
Description
2
RX
3
TX
5
GND
Others
NC
受 控
武汉锐科
