User Guide of Raycus 500W～2000W laser
24

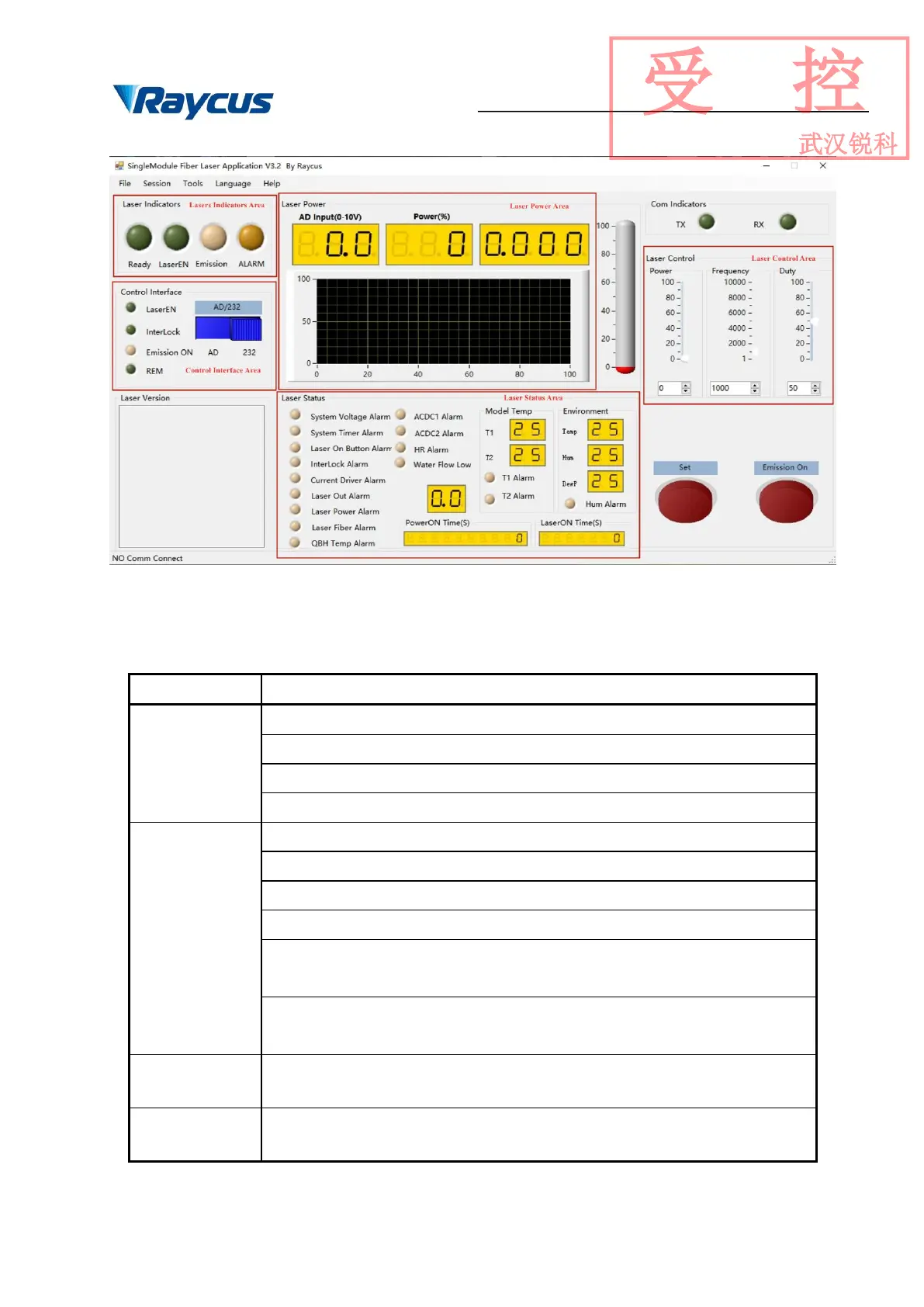

Figure 15The Function Area of Upper Computer Software
Table11 Brief Description of Each Functional Area
‘Ready’——The laser complete
‘Laser EN’——Enable Signal
‘Emission’——The laser is emitting laser
‘Laser EN’——Control Interface’s the pin LASER ON is high level
‘Interlock’——Control Interface’s the InterLock is on
‘Emission ON’——The laser is emitting laser
‘REM’——The laser is now in External Control mode
‘AD’——The laser is now in External AD Control mode, laser power is
controlled by external 0-10V
‘232’——The laser is now in External RS232 mode, laser power is controlled by
software
The output power percentage or Analog Quantity
The laser’s internal state, State Monitoring
To Next Page
