Using the Product
24
Model
Definition
2
RX
3
TX
5
GND
others
None
A three-core (RxD, TxD, GND) interface is used. For specific commands and
descriptions, please refer to the software manual of the host computer or ask a
Raycus technician for a communication protocol. The specific parameter settings
of the RS-232 control interface are as follows:
Table 10 RS-232 interface configuration parameters
Parameters
Set up
Baud rate
9,600
Data bits
8
Stop bit
1
polarity
None
Flow control
None

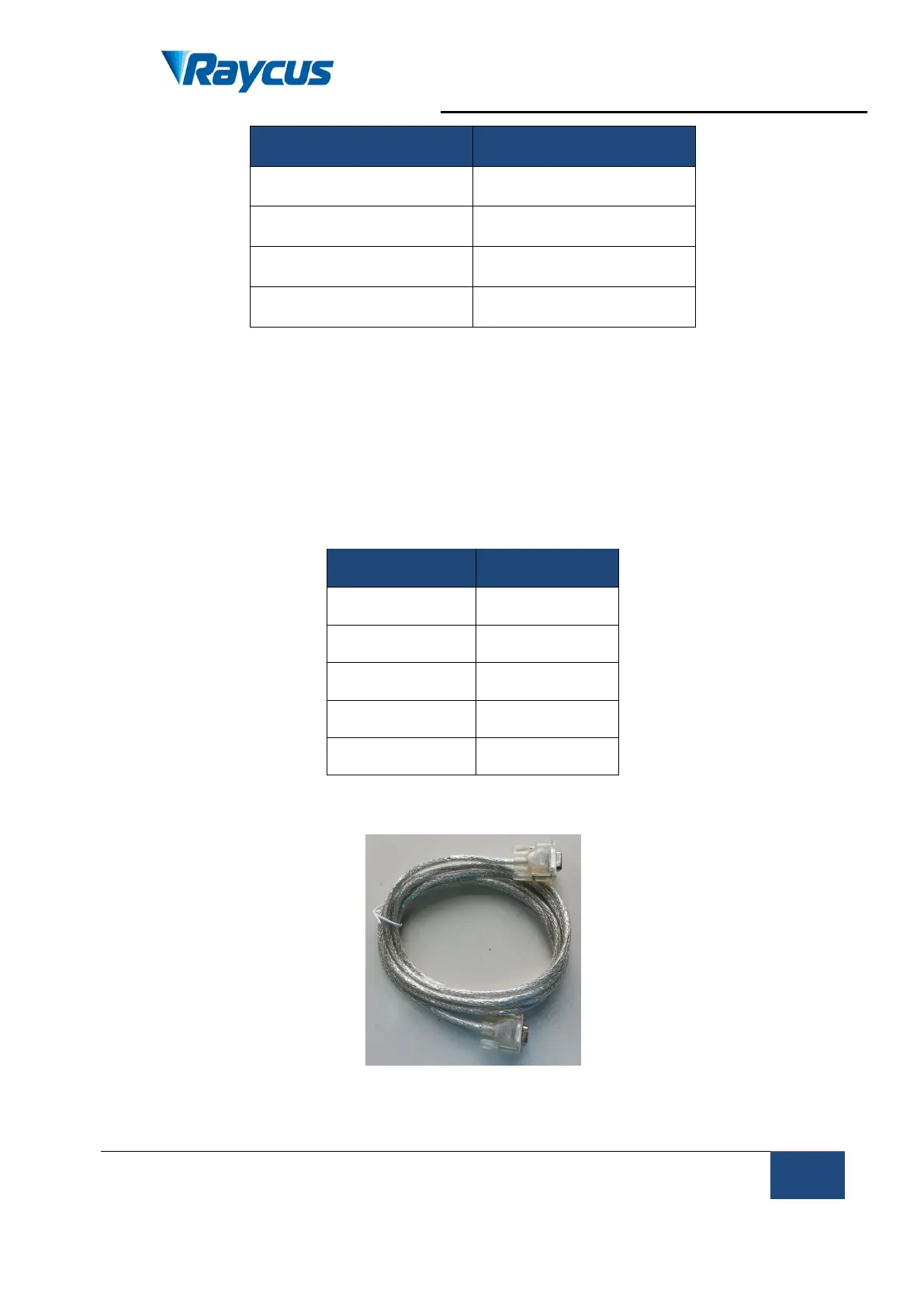

Figure 9 RS-232 serial cable configured for the product
Figure9 RS-232 serial cable
