Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C1500X/C2000X
3 Installation
3.1 Dimensions

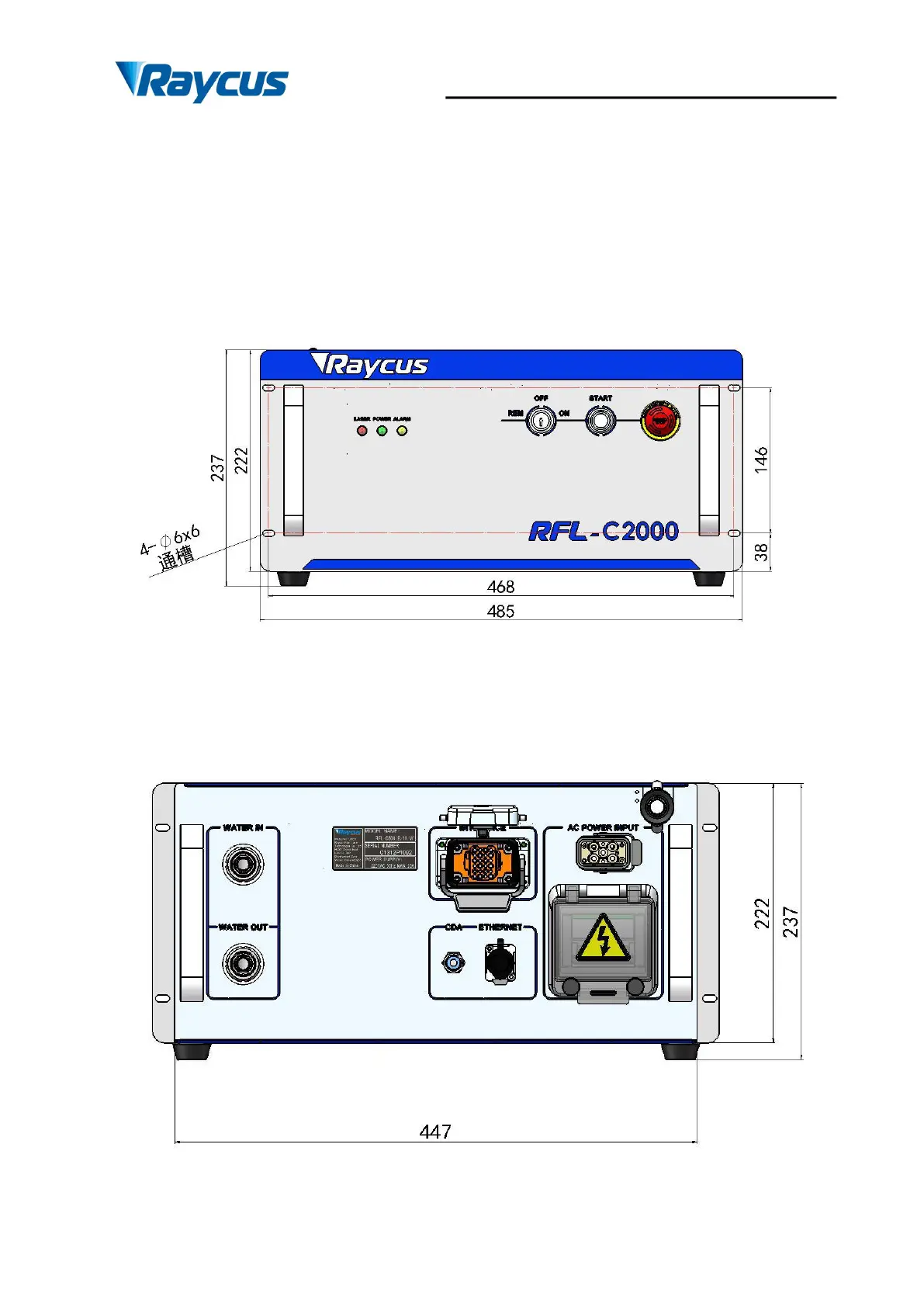

Figure 3 shows dimensions of RFL-C1500X/C2000X (take RFL-C2000X for example,
RFL-C1500X has the same dimensions).
Figure 2 (a) Front panel view of RFL-C1500X/C2000X (unit: mm)
Figure 2 (b) Rear panel view of RFL-C1500X/C2000X (unit: mm)
