Wuhan Raycus Fiber Laser Technologies Co., Ltd
User Guide of Global Version 2000 W CW laser
Raycus User Guide | Installation
10
13
3 Installation
3.1 Dimensions
3.1.1 Overall dimensions of Global Version 2000W CW laser

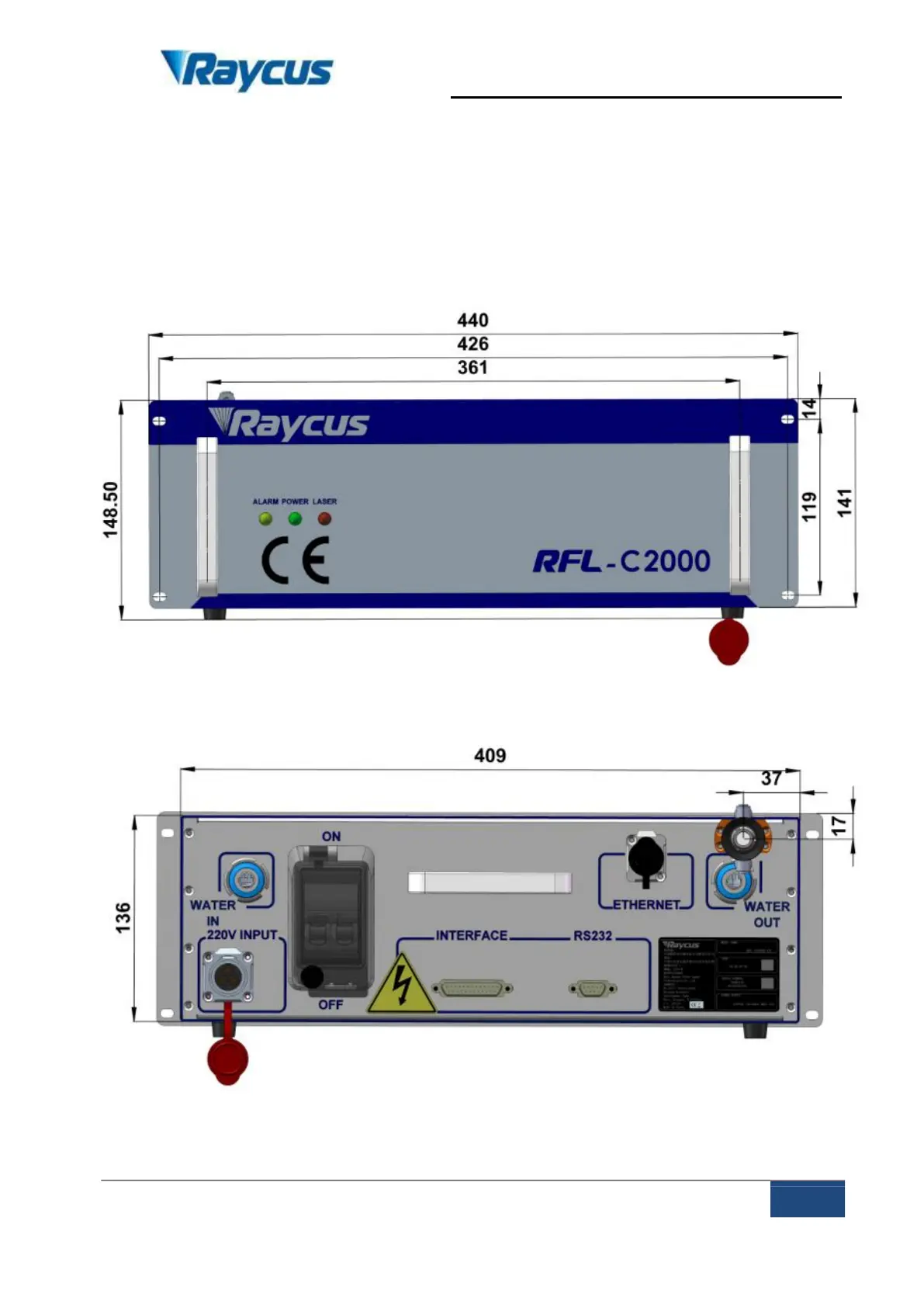

Figure 2 shows the external dimensions of the Global Version 2000W CW
laser.
Figure 2 (a) Front view (Unit: mm)
Figure 2 (b) Rear view (unit: mm)
