• C-MAP Essentials
• C-MAP 4D MAX
• *C-MAP 4D MAX+
Refer to the Raymarine website (
www.rayma-
rine.com
) for the latest list of supported chart cards.
To check the current availability of Jeppesen chart
cards and types, please visit:
www.jeppesen.com
or c-map.jeppesen.com.
Note: *C-MAP 4D MAX+ cartography will work
with Dragony
®
products however the ‘+’ features
will not be available.
8.3 Chart application controls
The Chart application consists of 2 modes: Motion
mode and Cursor mode. The behavior of some
controls are dependent upon mode. Options and
settings can also be accessed from the Chart context
menu.

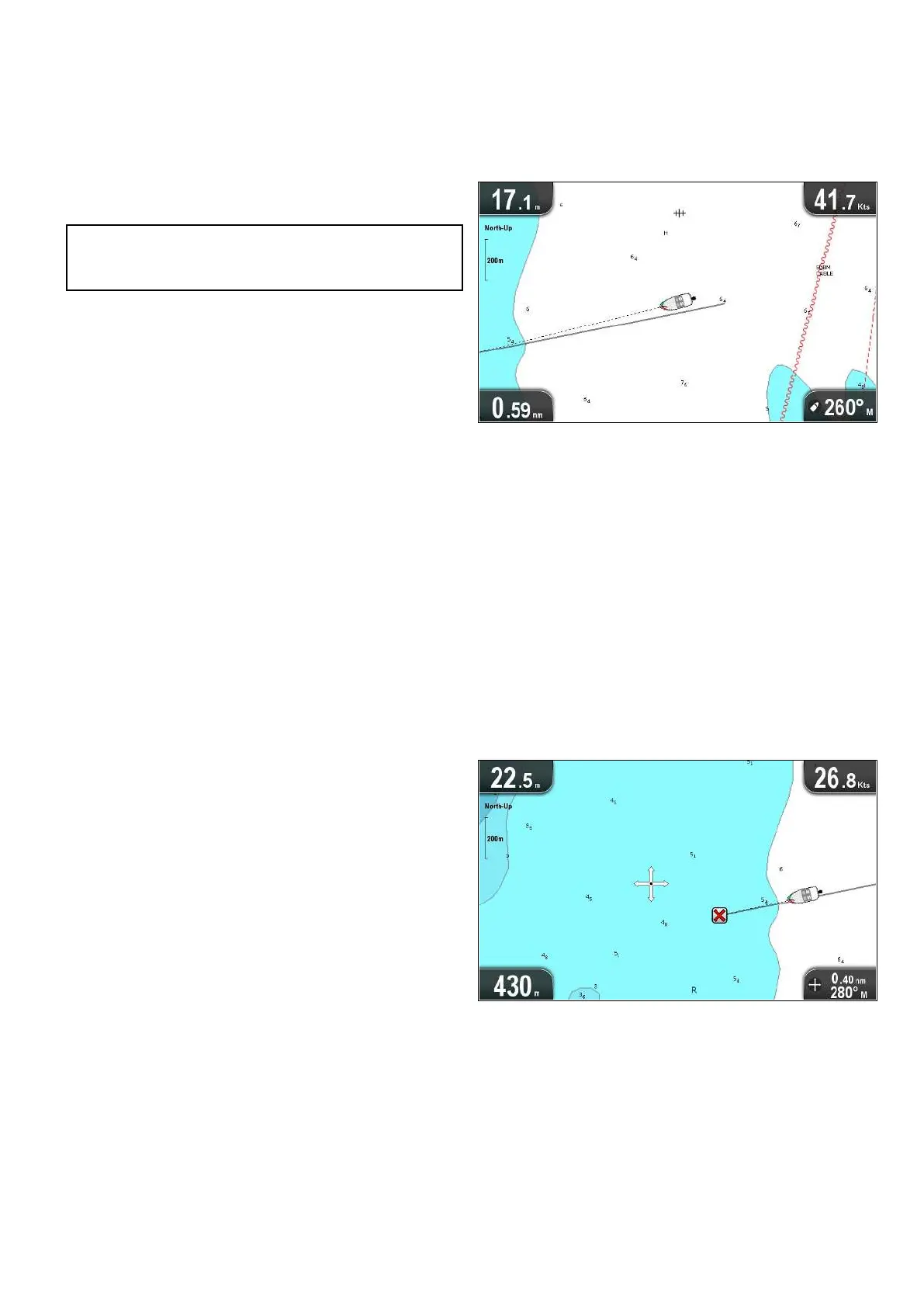

Motion mode
Motion mode is the default Chart application mode.
In Motion mode the boat symbol remains centered
onscreen and the Chart area moves around the boat
symbol.
In Motion mode the controls behave as follows:
• turning the Rotary control clockwise ranges in.
• turning the Rotary control counter-clockwise
ranges in.
• pressing the Joystick’s Ok button opens the Chart
application menu.
• pressing the Back button opens the View
switcher.
• moving the Joystick in any direction enters
Cursor mode.
Cursor mode
In Cursor mode the Joystick is used to move
around the Chart area. When the cursor reaches
the edge of the screen the Chart area will pan in
that direction.
In Cursor mode the controls behave as follows:
• turning the Rotary control clockwise ranges in.
• turning the Rotary control counter-clockwise
ranges out.
• moving the Joystick in any direction pans the chart
area in that direction.
• pressing the Joystick’s Ok button opens the
context menu.
Chart application
63
