Rotary Drive - Installation Guide 13

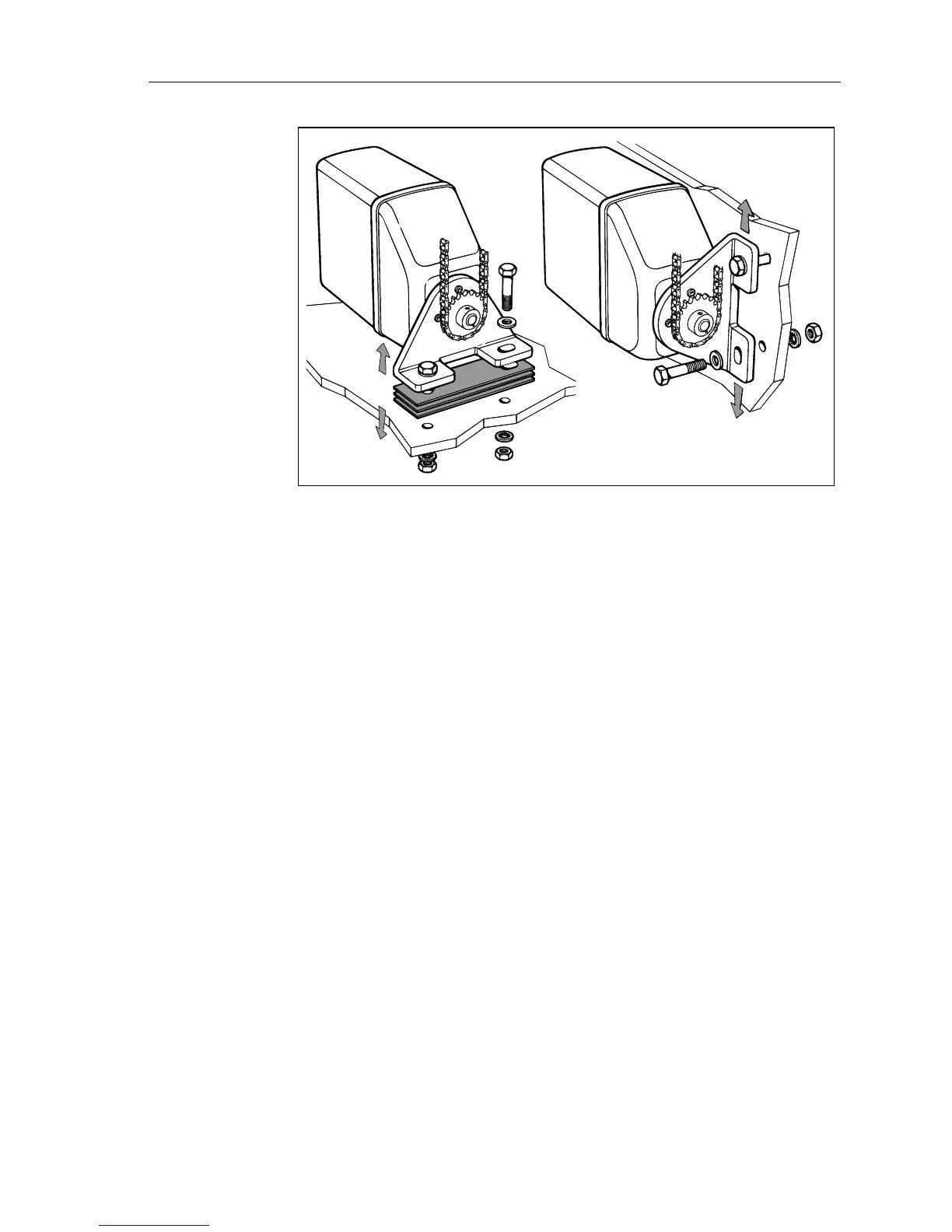

Figure 7: Adjusting chain tension
Steering check
When you have tensioned the chain correctly, turn the steering wheel
from hardover to hardover to check that the chain and sprockets move
freely and are correctly aligned.
WARNING:
Keep clear of moving steering systems at all times. Protect
moving parts from access during normal use.
3. Connecting to the course computer
WARNING: Electrical safety
Make sure the power supply is switched off before you make any
electrical connections.
The rotary drive has electrical connections for:
• drive motor: two single-core cables: red and black
• clutch: a two-core cable with red (+) and blue (-) cores
D5086-1
