Raypak 156 - Pilot Assembly Service; Pilot Removal and Cleaning

29
Pilot Removal & Cleaning
Remove burner tray from heater1
Disconnect tubing from gas valve.2
Remove (2) screws holding pilot bracket in place.3
see image.
Remove the pilot assembly by pushing the pilot4
Remove the locating pilot screw from the bracket5
to release the pilot assembly.
Reverse above procedure to reinstall6

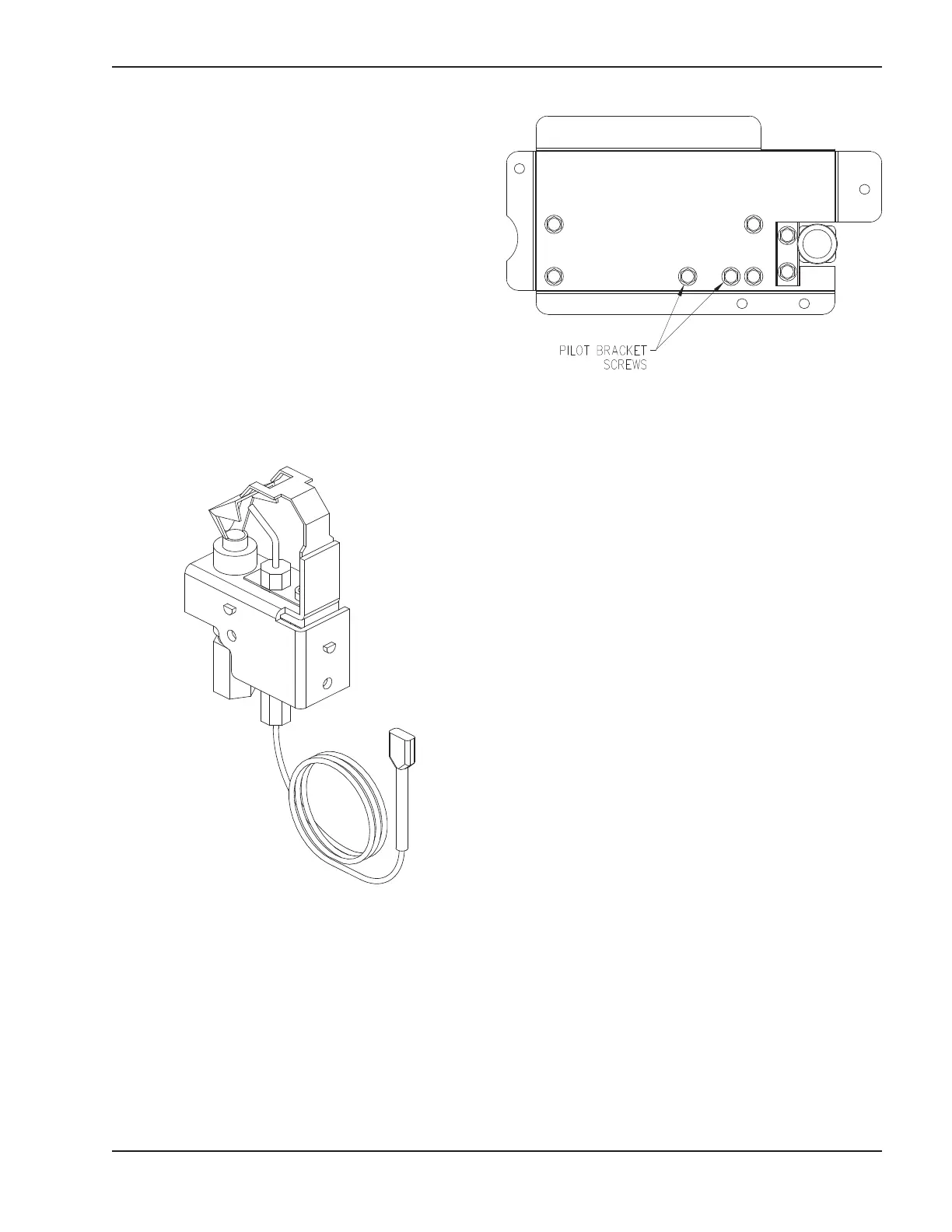

Fig. 28: Spark to Hood Pilot
Fig. 29: Pilot Bracket Screws
