Raypak AVIA 264 - Igniter;Flame Sensor; Igniter Removal Procedure

COMPONENTS

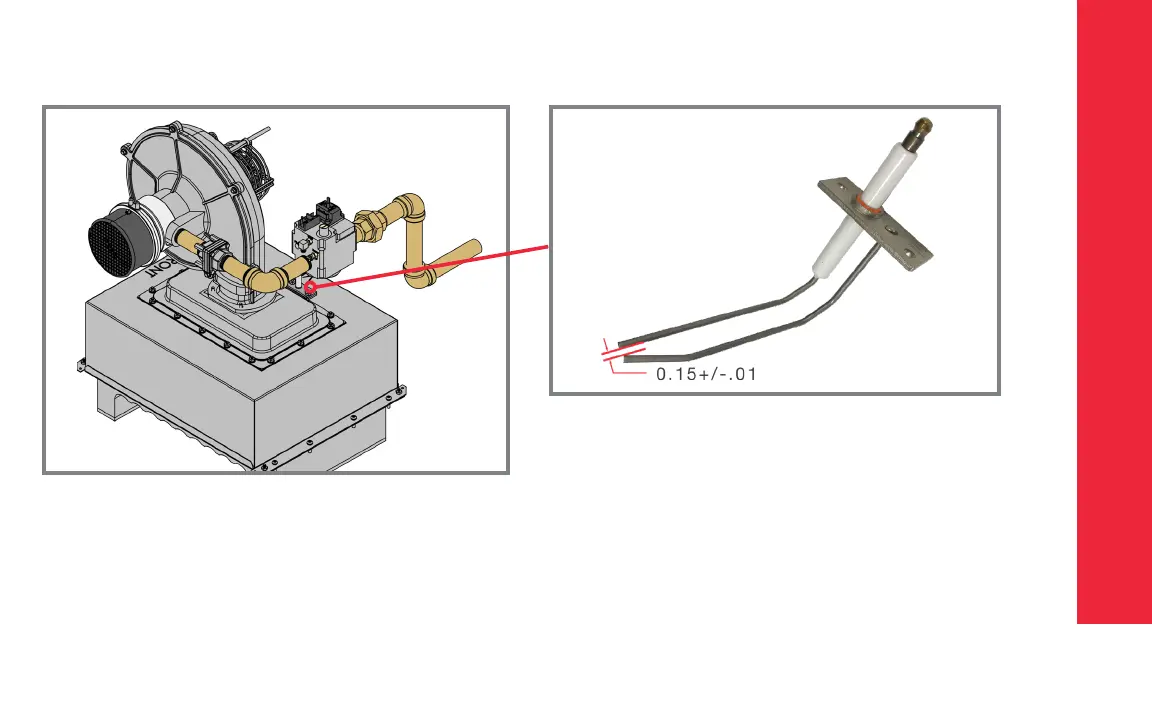

Igniter/Flame Sensor
41
Igniter Removal.
1. Remove top cover.
2. Disconnect spark cable from igniter.
3. Use M10 socket, remove the two nuts holding the igniter.
4. Carefully remove igniter and gasket.
5. When replacing igniter, be sure to add a new gasket when installing igniter.
Igniter
