Raypak AVIA 264 - Gas Pressure Test; Required Pressure and Manifold Pressure

Gas Pressure Test
Gas Required Pressure Manifold
Pressure
Min. Max.
Natural Gas
3.5”
(Dynamic)
10.5”
(Static)
-0.3”
Propane Gas
8.0”
(Dynamic)
13.0”
(Static)
-0.3”
GAS SUPPLY
• Propane requires an external “pounds
to inches” regulator
8

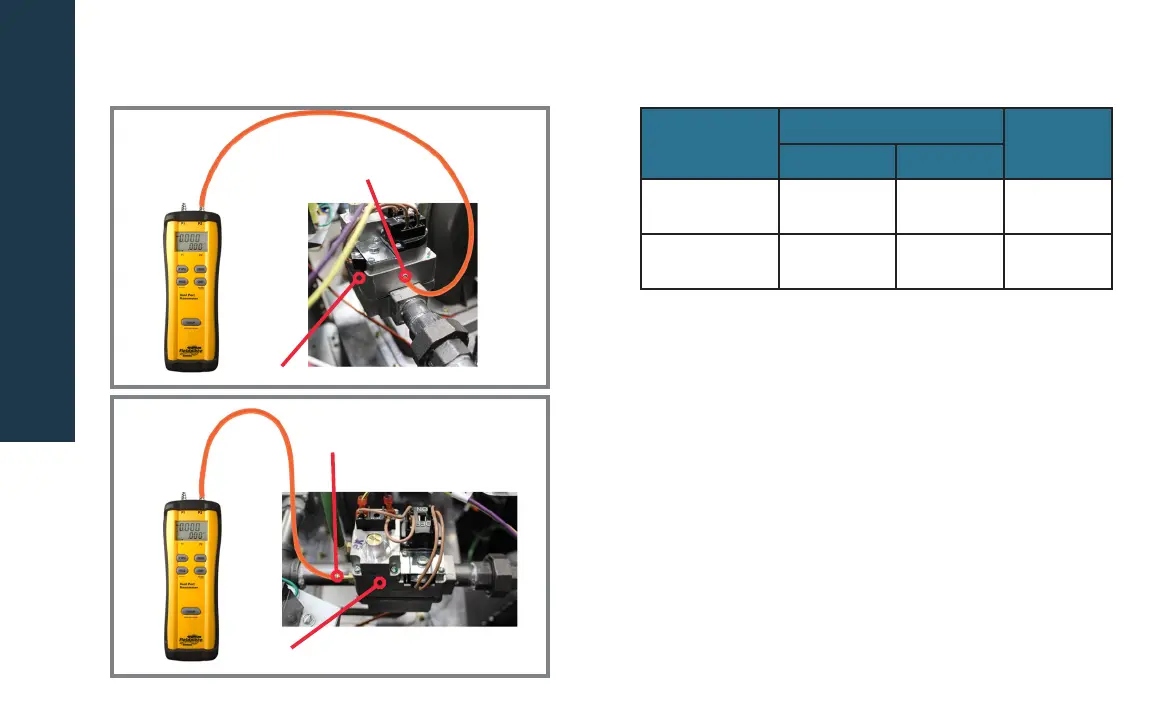

Inlet Gas Pressure
Gas Valve
Manifold
Gas Pressure
Gas Valve
