Accessories

MI3 Rev. G Nov/2015 77

For correct temperature readings, the transmission of the close focus lens must be set via

the control panel in the communication box. See section 8.2 <Head> Page, page 50!

Make sure the measuring head and the close focus lens are at the same temperature!

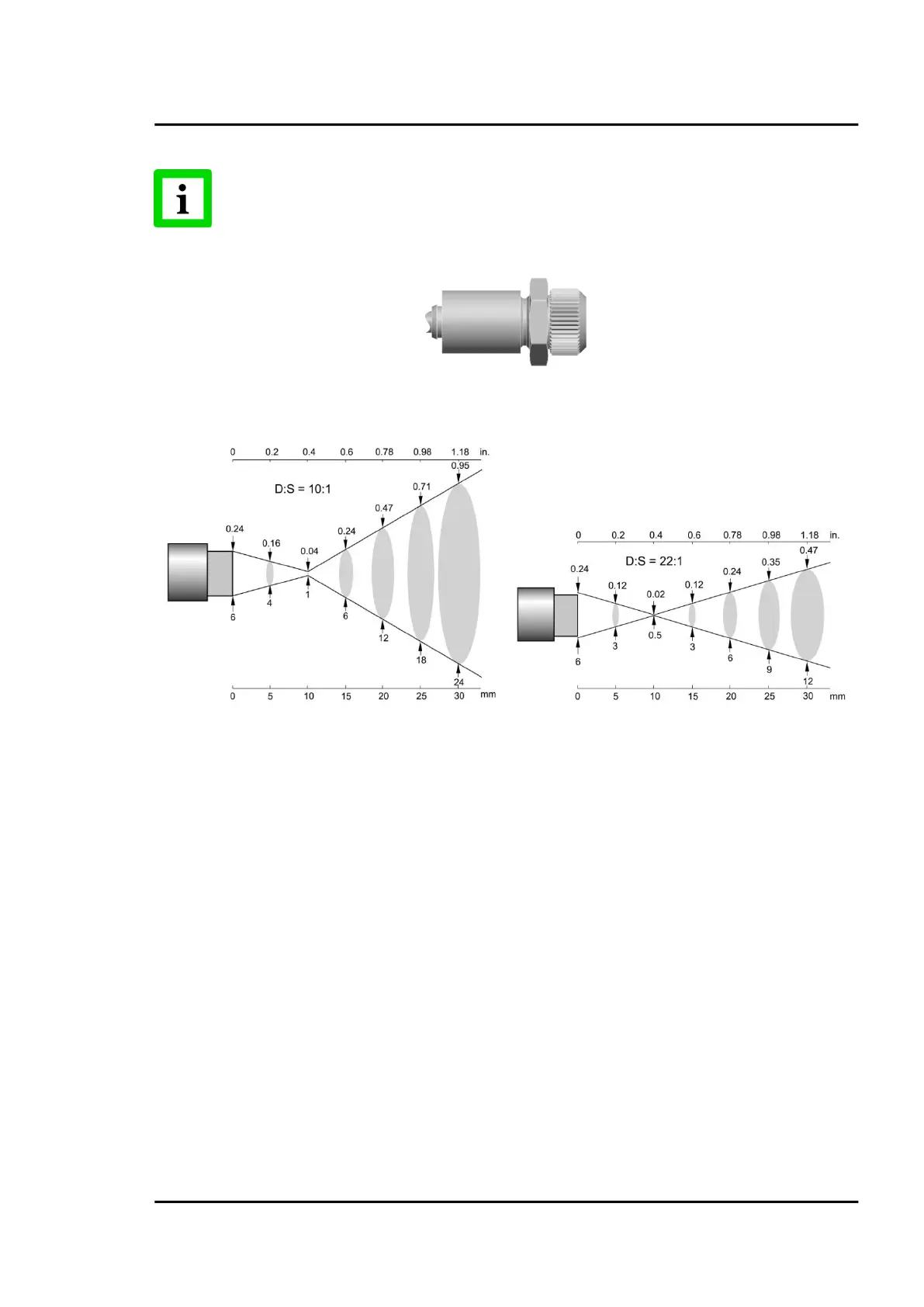

Figure 66: Sensing Head with Close Focus Lens (XXXMI3ACCFL)

Figure 67: Spot Size Charts for Close Focus Lens
