Profibus
MI3 Rev. G Nov/2015 91
14.1.2 Comm Box (DIN)
Pin
Profibus
1
n.a.
2
Shield
3 (negative signal)
A2 (not supported while termination “on”)
4 (positive signal)
B2 (not supported while termination “on”)
5 (negative signal)
A1
6 (positive signal)
B1
7
Shield
8
n.a.
9
DE
LED, yellow
ON: data-exchange

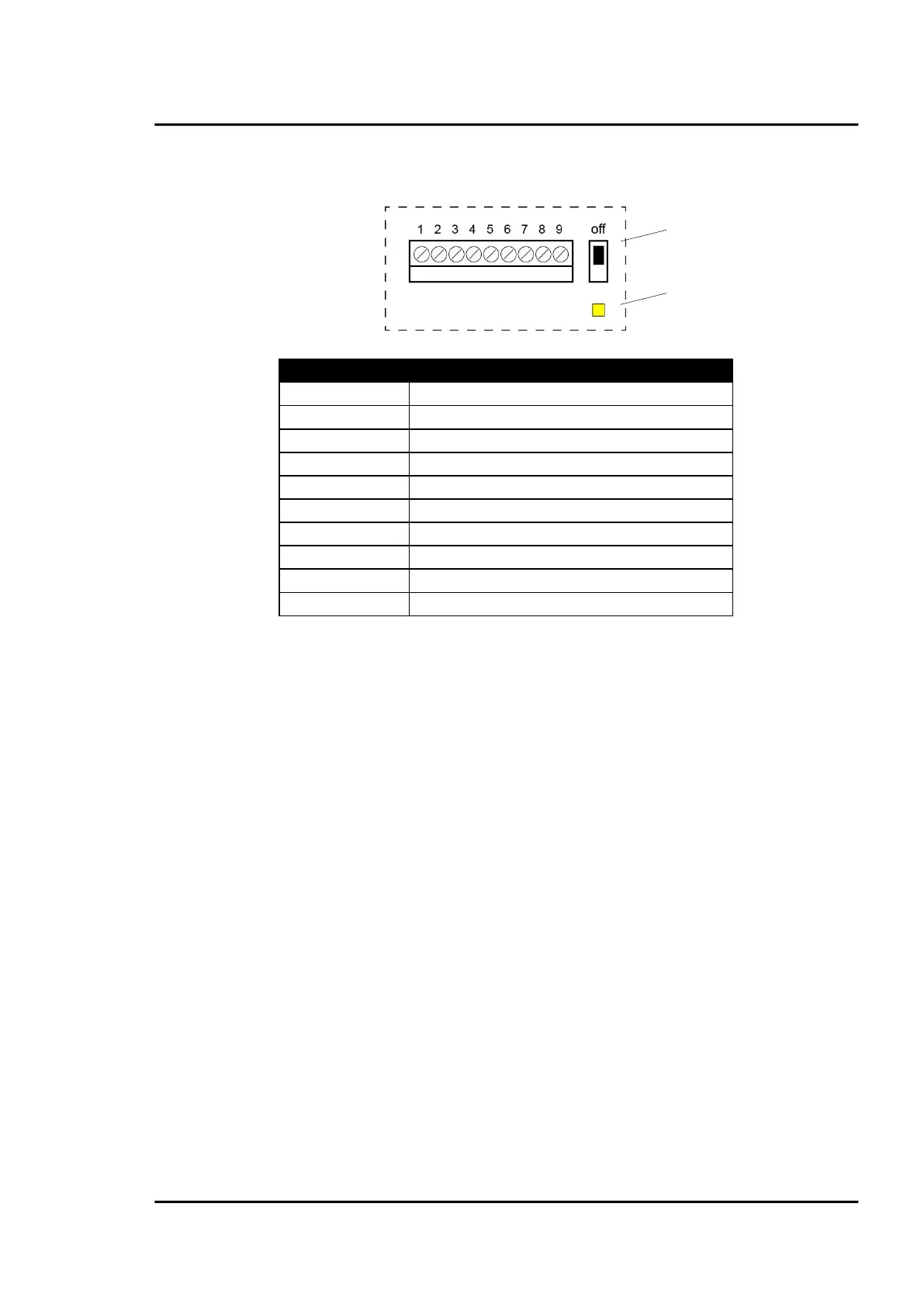

Figure 80: Terminal for Comm Box (DIN 6TE)
Indicator
Termination
