12
REPAIR AND MAINTENANCE

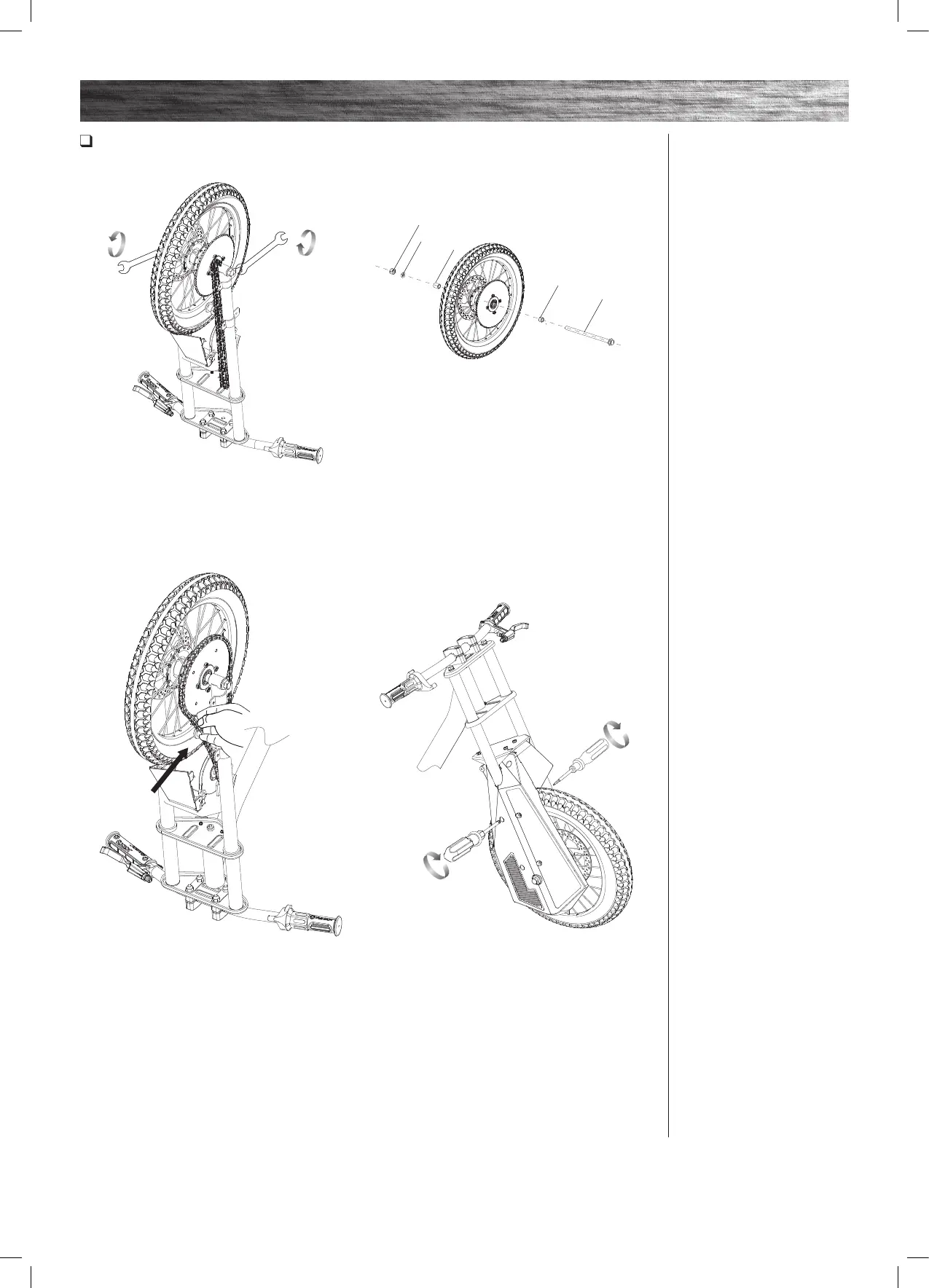

Front Wheel and Chain Replacement (Continued)
Required Tools: 5 mm Allen Wrench, 15 mm Wrench, 19 mm Wrench
6 Re-attach chain around the front wheel and the
motor sprocket.
Note: Make sure the chain tensioner is resting on the
outer side of the chain.
5 Re-install axle bolt and tighten front wheel securely
to front fork.
7 Re-attach chain guard.
Front Wheel Hardware Sequence
9-3. 19 mm Lock Nut
9-2. Flat Washer
Fork
9-1. Large Spacer
Front Wheel
9-5. Small Spacer
Fork
9-4. 15 mm Axle Bolt
9-3
9-2
9-1
9-5
9-4
To Next Page
