Razor DXT User Manual

123
5
6
4
1
7
8
9
9-1
9-3
9-2
9-4
12
11
10-2
13-1
13
13-2
10-2
10
10-4
10-3
10-3
22
17
18
19
21
22-1
23
14-2
16
15
15-3
15-1
15-2
20
14 14-1
18-1
18-2
10-1
9-5
15
Keep your product running for years with genuine Razor parts. Visit our website to purchase replacement parts.
(Specifications subject to change without notice.)

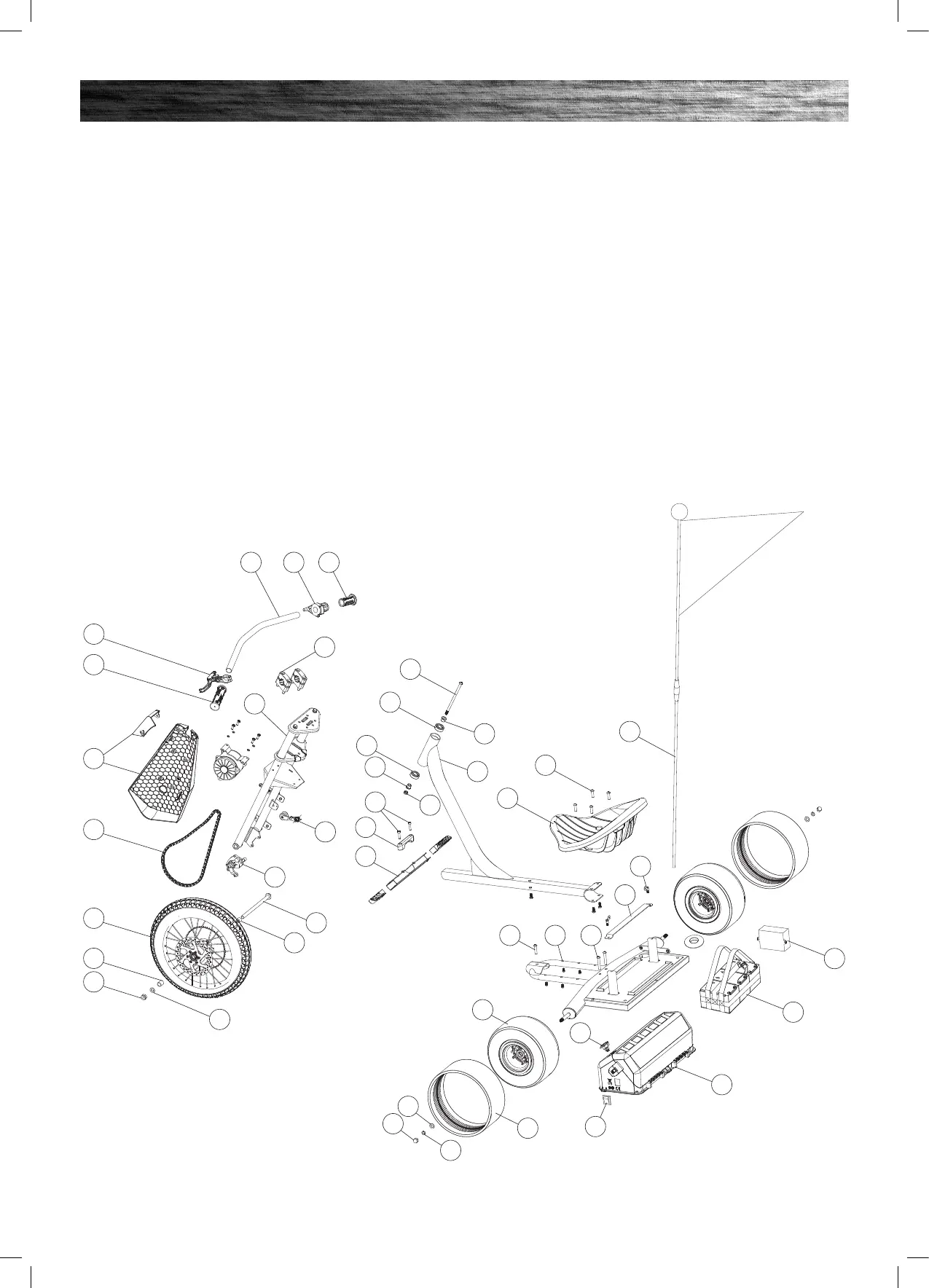

DXT ELECTRIC PARTS
1. Handlebar Grips (x2)
2. Twist Grip Throttle
3. Handlebars
4. Brake Lever
5. Handlebar Clamps (Upper/Lower)
6. Front Fork
7. Chain Guard (Right/Left)
8. Chain
9. Front Wheel
9-1. Large Spacer
9-2. Flat Washer
9-3. Locknut
9-4. Axle Bolt
9-5. Small spacer
10. Down Tube
10-1. Steering bolt
10-2. Brushing (x2)
10-3. Bearing (x2)
10-4. Locknut
11. Chain Tensioner
12. Caliper Brake
13. Footpegs
13-1. Footpeg clamp
13-3. Coupling bolts (x2)
14. Rear Frame
14-1. Rear Frame Coupling Bolt (Long) (x2)
14-2. Rear Frame Coupling Bolt (Short) (x1)
15. Rear Wheel (x2)
15-1. Locknut (x2)
15-2. Spring Washer (x2)
15-3. Flat Washer (x2)
16. Sleeve (x2)
17. Control Module
18. Battery (3- 12v/12ah) with 30 amp fuse
18-1. Battery Bracket
18-2. Battery Bracket Bolt (x2)
19. Battery Cover
20. Charge Port
21. On/Off Switch
22. Seat
22-1. Seat Coupling Bolt (x4)
23. Flag

Razor DXT Specifications

General

Frame	Steel
Fork	Steel
Wheels	20-inch
Tires	20" x 2.125"
Brakes	Front and rear V-brakes
Gearing	Single-speed
Grips	Rubber
Saddle	Padded BMX style
Handlebar	Steel riser
