ERROR CODES
ERR-1 and ERR-2 Push and hold (at least 2 seconds) the y EJECT button to eject the compact
disc. If the CD is not ejected, push the
t RESET button by using a pin and then
y EJECT (2 seconds) again.
Should not be possible to eject the CD, please consult your dealer (or an
authorized service centre).
ERR-3 The compact-disc has been wrongly inserted upside down.
ERR-4 The compact disc format is not supported (or data / files are not correct).

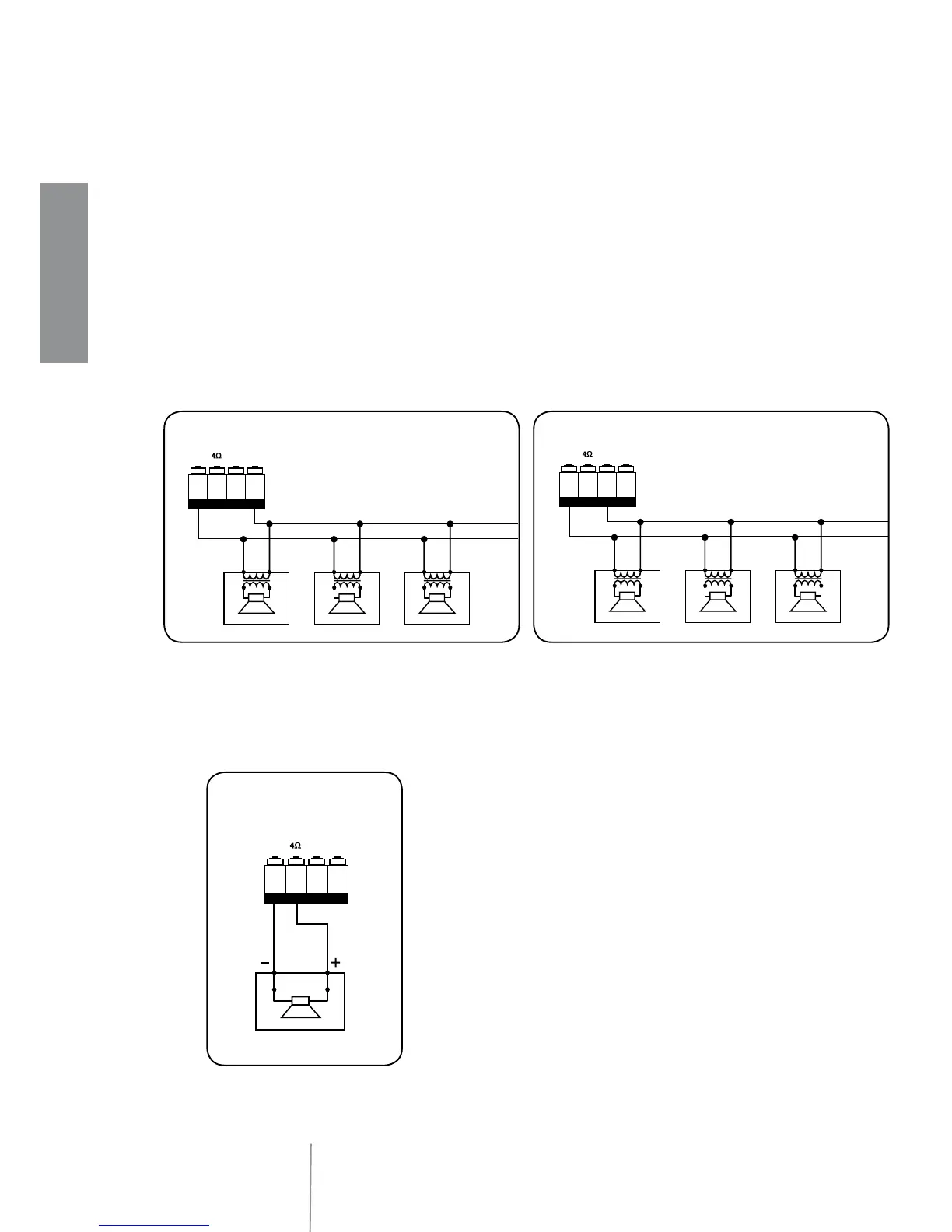

LOUDSPEAKER CONNECTION
Use 1 output only – DO NOT MIX 100 / 70 V and 4 Ω CONNECTIONS.
70 / 100 V CONSTANT VOLTAGE OUTPUTS
Each loudspeaker shall have a line transformer with the input voltage equal to the line voltage
(70 / 100 V).
The loudspeaker total power shall not be higher than the amplifier maximum power.
LOW IMPEDANCE OUTPUT (4 Ω)
The loudspeaker total impedance shall not be lower than 4 Ω.
Note: a total impedance equal to 4 Ω allows the amplifier maximum power
delivery. A higher impedance leads to a reduction of the power delivered
by the amplifier (e.g. 8 Ω: approx. ½ power, 16 Ω: approx. ¼ power). An
impedance lower than 4 Ω overloads the amplifier.
Loudspeaker models shall be chosen by considering the max. power
(160 W on a 4 Ω load) that the amplifier can deliver.
Loudspeaker line should be as short as possible, long cables may need
large wire cross-sections.
Do not use, at the same time, both the low impedance output (4 Ω) and the
constant voltage output (70V or 100V), as this overloads the amplifier.
100V0
POWER OUTPUT
100V70VCOM
100V0 100V0
70V0
POWER OUTPUT
100V70VCOM
70V0 70V0
100 V 70 V
POWER OUTPUT
100V70VCOM
