POWER SUPPLY VOLTAGE CHANGE
IMPORTANT: This manual section concerns qualified personnel only.
The following instructions are to be ignored by the user.
Make sure the device is not connected to the
mains (unplug the power supply cable).
Remove the lid.
The power supply circuit is under the
ventilation screen (see picture 1), which can
be removed by unscrewing the 2 screws.
The voltage change
connector is highlighted by
a square.
If the mains voltage is
230 V, set the connector to the 230Vac position (see
the picture 3), according to the PCB indication (looking at the connector front,
the central pin is connected to the right one).
If the mains voltage is
115 V, set the connector to the 115 Vac position (see
the picture 4), according to the PCB indication (looking at the connector front,
the central pin is connected to the left one).
Refit the power supply circuit metallic screen and the device lid.
Before connecting the device to the mains, make sure that the fuse (inside the IEC power supply
connector of the rear panel, see 26) is the correct current rating for the mains voltages (read the
fuse indication below the connector).

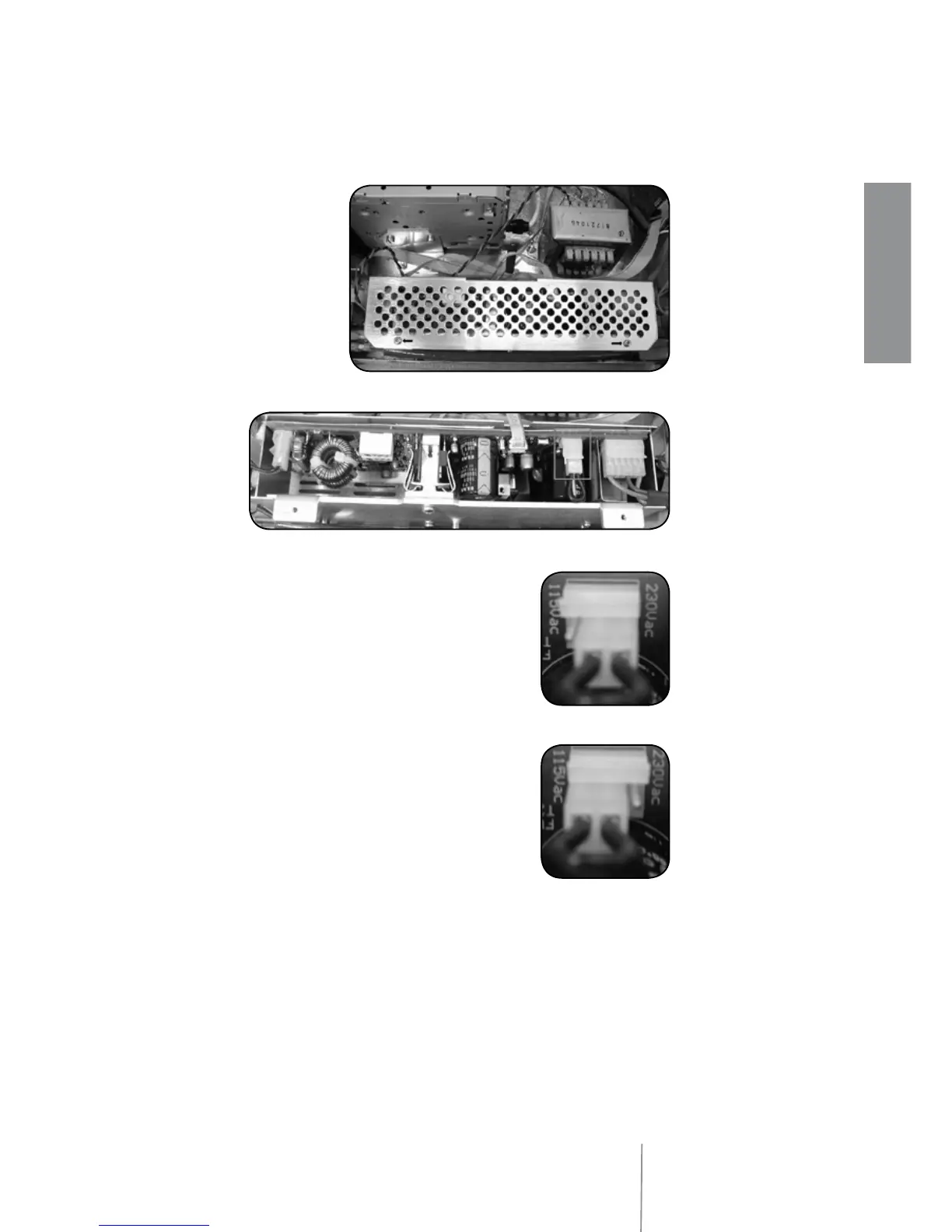

PICTURE 1
