3.3 Electric connection
3.4 Lamp instruction
RDC6445G have fifteen red lamps:
LED NUMBER
NAME
SENSE
LED1
LmtX-
X negative limit indicator
LED2
LmtX+
X positive limit
LED3
LmtY-
Y negative limit
LED4
LmtY+
Y positive limit
LED5
LmtZ-
Z negative limit
LED6
LmtZ+
Z positive limit

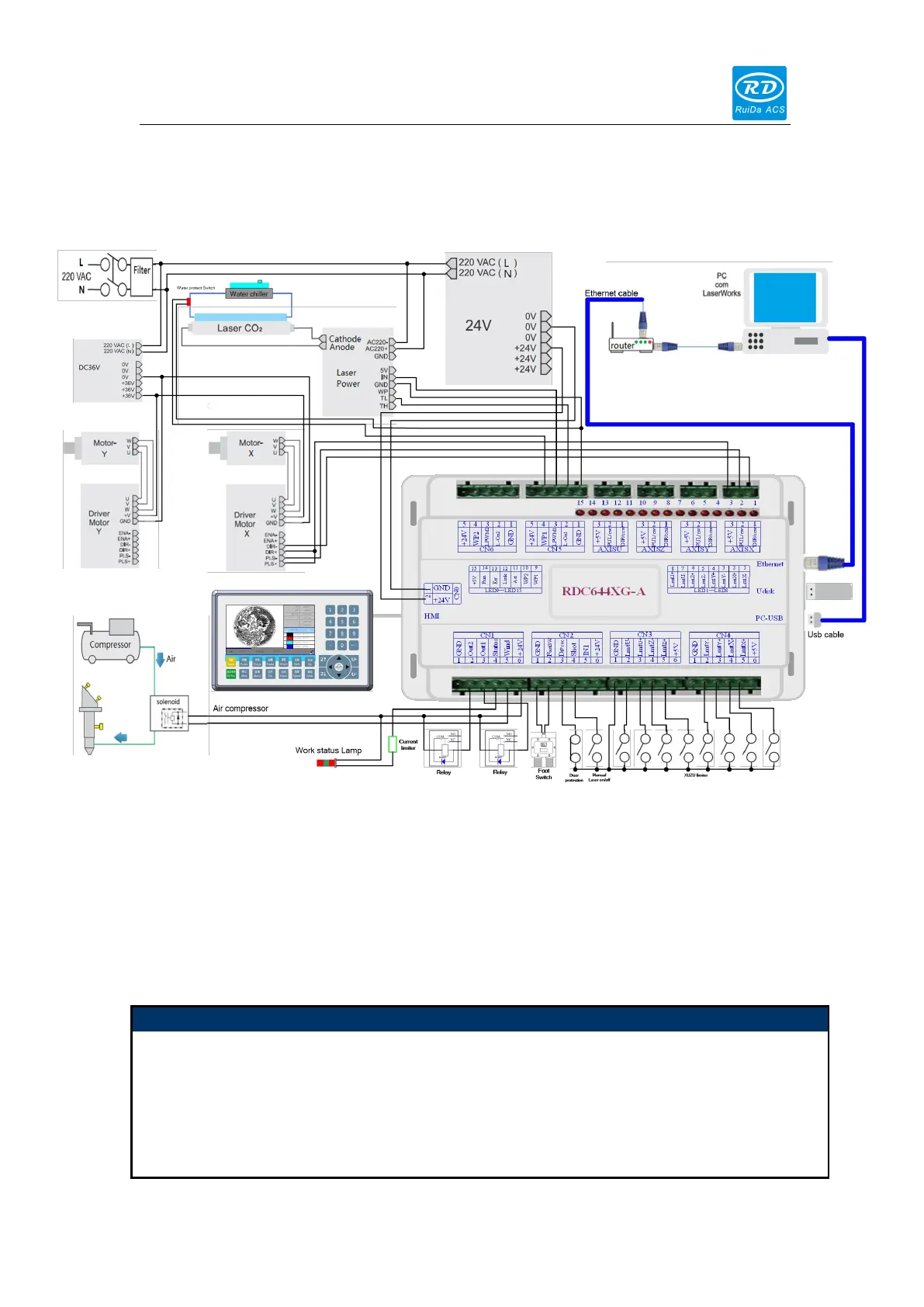

Figure 3.3-1 electric connection
