8 Operating Instruction of Panel
8.1 Brief
8.1.1 Overview
RDC6445G-HMI control panel (hereinafter referred to as "panel") is a 5.0 inch TFT LCD
screen based human-machine interface, with beautiful interface, man-machine friendly,
smooth control, cost-effective features. The panel can depict the motion track of the
controller in real time, which makes the user understand the current processing graphics
at a glance, supports file management, file preview, user and manufacturer parameter
modification, and supports multi-language interface switching and other functions.
Panel Features：
 5.0″TFT
 854×480 resolution
 64K color
 RS232 standard serial communication

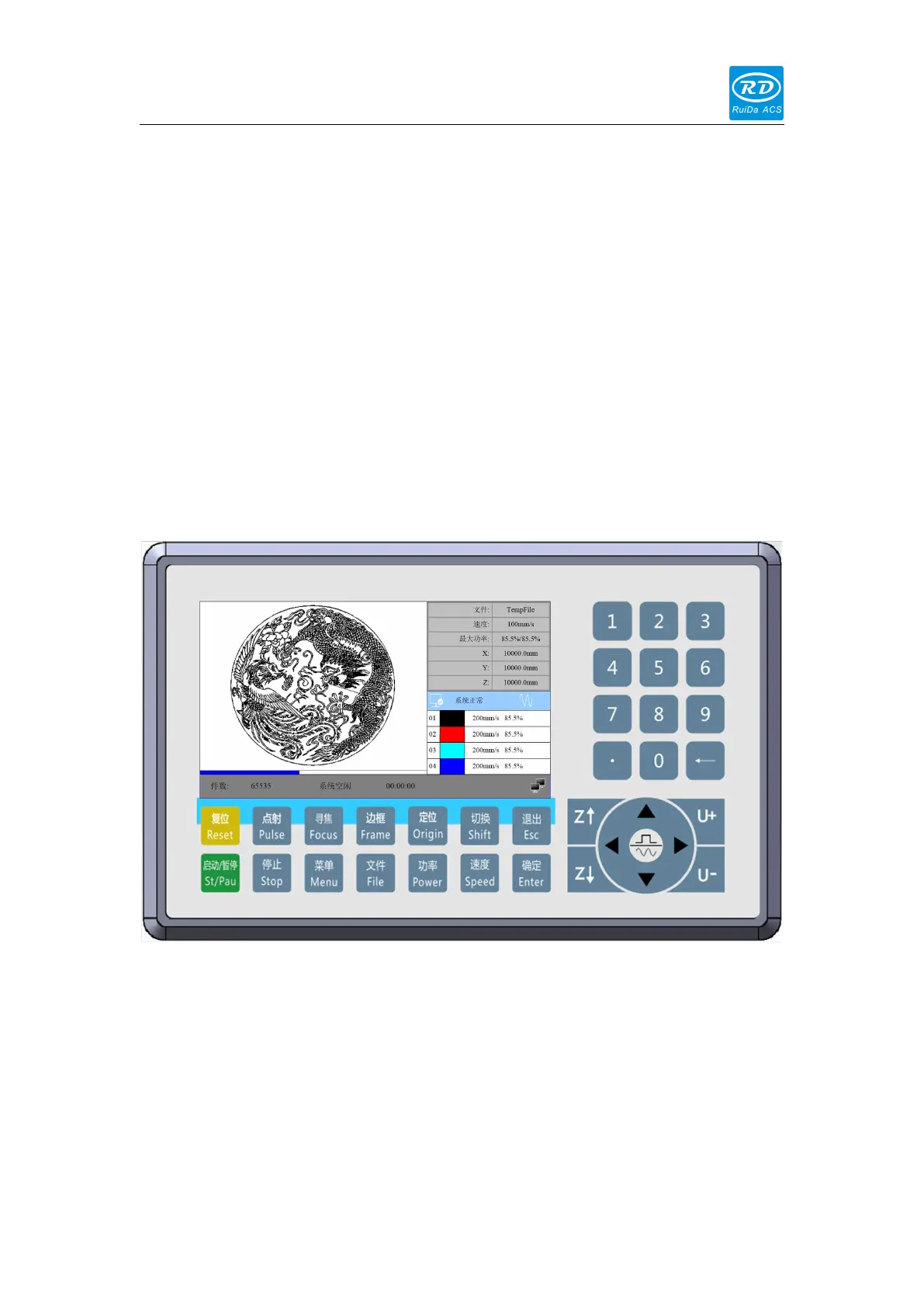

Figure 8.1.1-1 Object picture of panel
